Einsatzbeispiele

Variable stop systems for workpiece heads in production machines

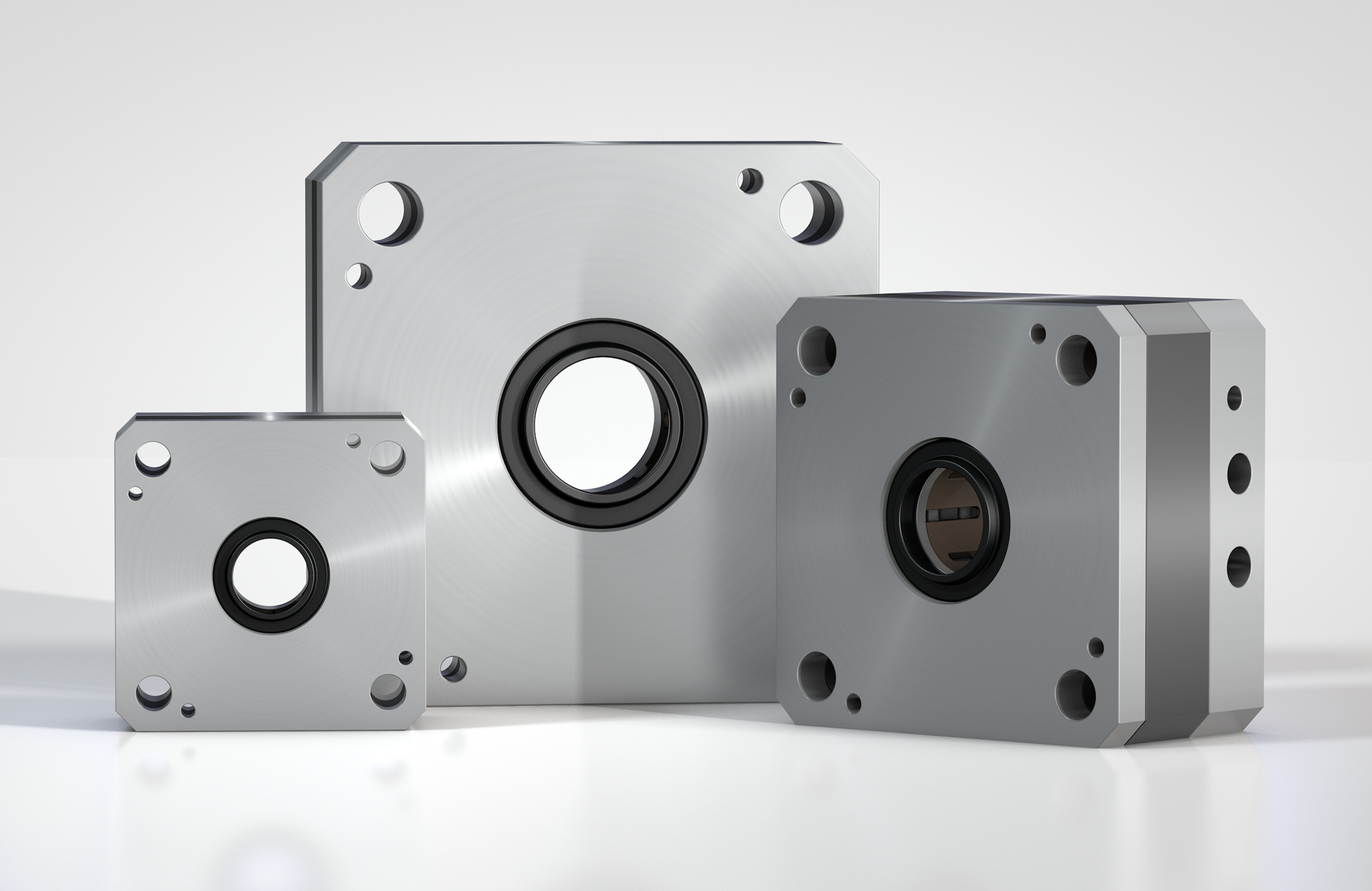

Clamping Elements LOCKED PN

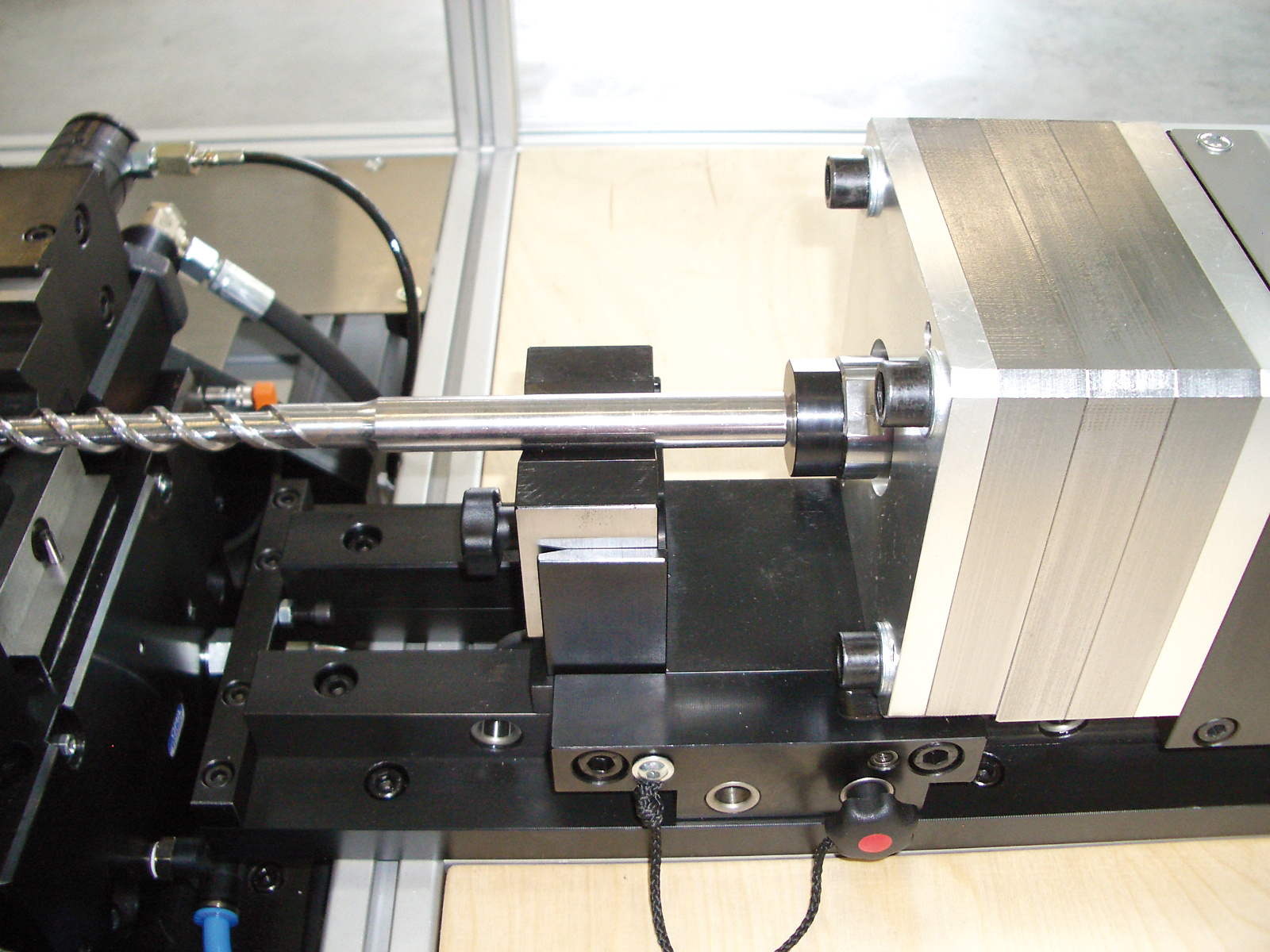

ACE clamping elements assist in the production of drilling tools: the LOCKED-P system clamps and at the same time absorbs the opposing forces of the joining process without difficulty Copyright: GRAF automation GmbH, 88214 Ravensburg, Germany
Mech. Engineering & Automation
machines and plants, jacking systems, light presses, punching/stamping machines, stacking units

ACE Rod clamping systems ensure precise and simultaneously variable positioning of workpiece heads in the manufacturing industry

ACE clamping elements are inserted, as a variable stop, during a joining process for the production of drilling tools. They meet the requirements for a precise positioning of the workpiece head and an adaptation of the length tolerance of up to 3 mm, ideally. ACE was awarded the contract because the clamping element is attached on a bar and its PN LOCKED series is specifically designed for this purpose. For clamping on linear guides, rails, axles and shafts, ACE offers a great range of high-performance models.
×
