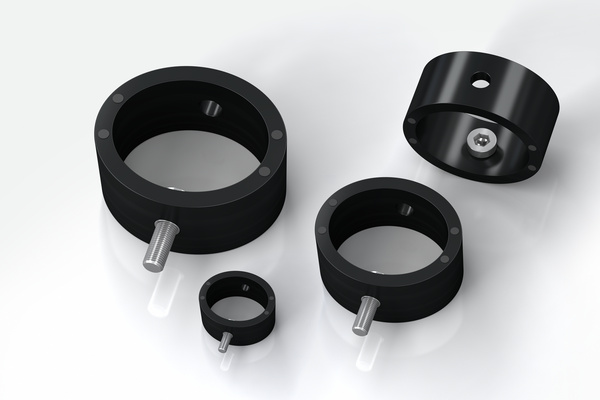

TUBUS TR-H

Compact size with soft deceleration and high energy absorption

Radial Damping, Hard Version
Energy capacity 2.7 Nm/Cycle to 427 Nm/Cycle
Maximum stroke 15 mm to 56 mm

Harder mixture of materials for higher energy absorption: The maintenance-free and ready-to-install TR-H profile dampers, are stressed radially in the same way as the basic TR model. With almost the same dimensions, they also decelerate with a very long and soft action. The harder co-polyester elastomer mixture leads to significantly high energy absorption of 2.7 Nm to 427 Nm in these models. Easy to mount due to the supplied special screw.

The TR-H product family is space-saving with dimensions of Ø 30 mm to Ø 102 mm. It complements the TUBUS range between the progressive TR and almost linear TS models. Users are therefore provided with a full range of deceleration curves within the ACE TUBUS family.

The TUBUS TR-H products are suitable end position dampers in linear axes, in toolmaking and tool machines and in hydraulic, pneumatic and handling equipment as well as other applications.

Technical data

Energy capacity 2.7 Nm/Cycle to 427 Nm/Cycle

Stroke max. 15 mm to 56 mm

Energy absorption 39 % to 62 %

Dynamic force range 550 N to 21,200 N

Operating temperature range -40 °C to +90 °C

Construction size 30 mm to 102 mm

Mounting in any position

Material hardness rating Shore 55D

Material Profile body: co-polyester elastomer

Environment Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell.

Impact velocity range Max. 5 m/s

Torque max. M5: 3 Nm
M6: 6 Nm
M8: 20 Nm

Application field furniture industry, sports equipment, linear slides, pneumatic cylinders, handling modules, machines and plants, stacking units, electro-mechanical drives, conveyor systems, dock constructions for shipbuilding

Note

Suitable for emergency stop applications and for continous use. For applications with preloading and increased temperatures please consult ACE.

Safety information

Mounting screw should additionally be secured with Loctite.

On request

Special strokes, -characteristics, -spring rates, -sizes and -materials.

×
