Rotary Dampers
FRN-C2-R-G1

Flexible and cost efficient use

Continuous Rotation, Gear included
Damping torque 2 Ncm to 3 Ncm

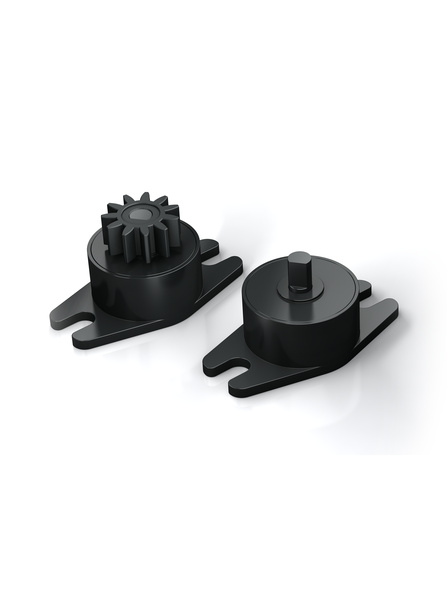

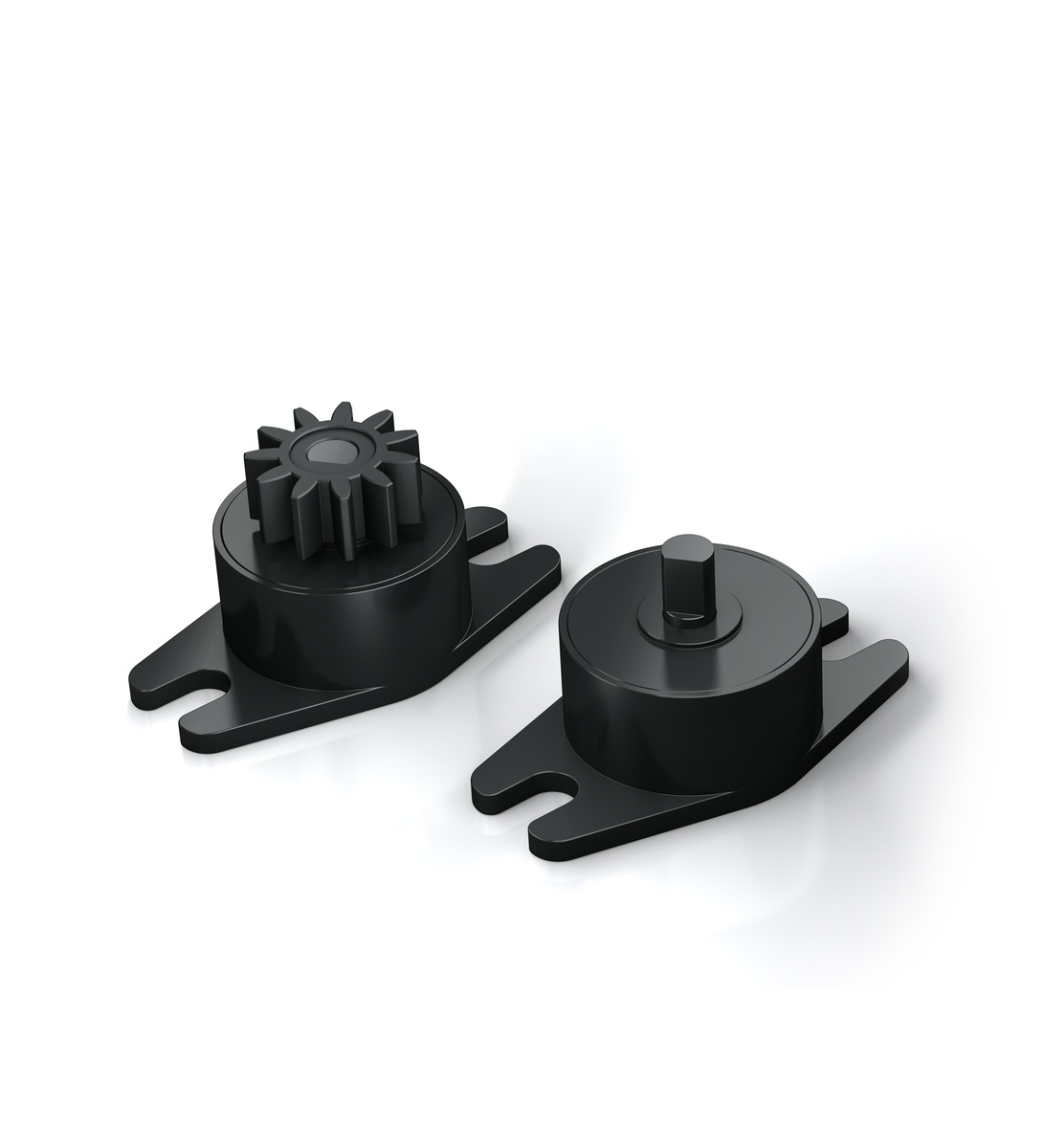

The damping direction of the simple FRT-C2 and FRN-C2 is either right, left or two-sided rotation. These ACE rotary dampers with plastic body can decelerate directly in the pivot point or linear through a gear and gear rack. ACE rotary dampers are maintenance-free and ready-to-install.

Technical data

Execution gear included

Damping torque 2 Ncm to 3 Ncm

Damping direction right

Construction size Ø 15 mm

Rotational speed max. 50 rpm

Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range 0 °C to 50 °C

Pressure angle 20°

Material Outer body, Gear: plastic; Shaft: steel

P.C.D. 8.8 mm

No. of teeth 11

Module 0.8

Mounting information

No axial or radial forces may be induced via the shaft.

Safety information

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special designs available on request. Toothed plastic racks (modules 0.5 to 1.0) are available for the rotary dampers with pinions.

×
