Rotary Dampers
FRT-G2

Small and lightweight for finest braking

Continuous Rotation
Damping torque 0.2 Ncm to 1 Ncm

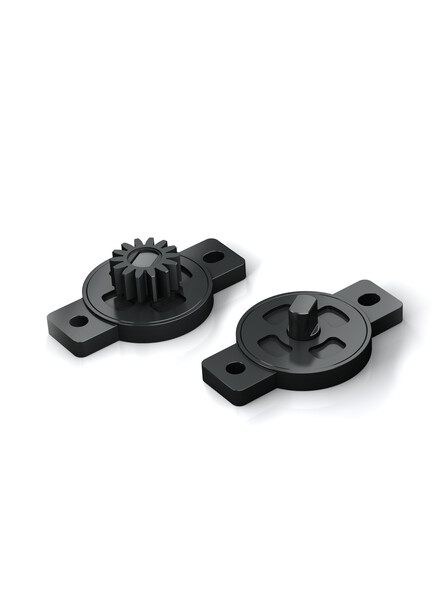

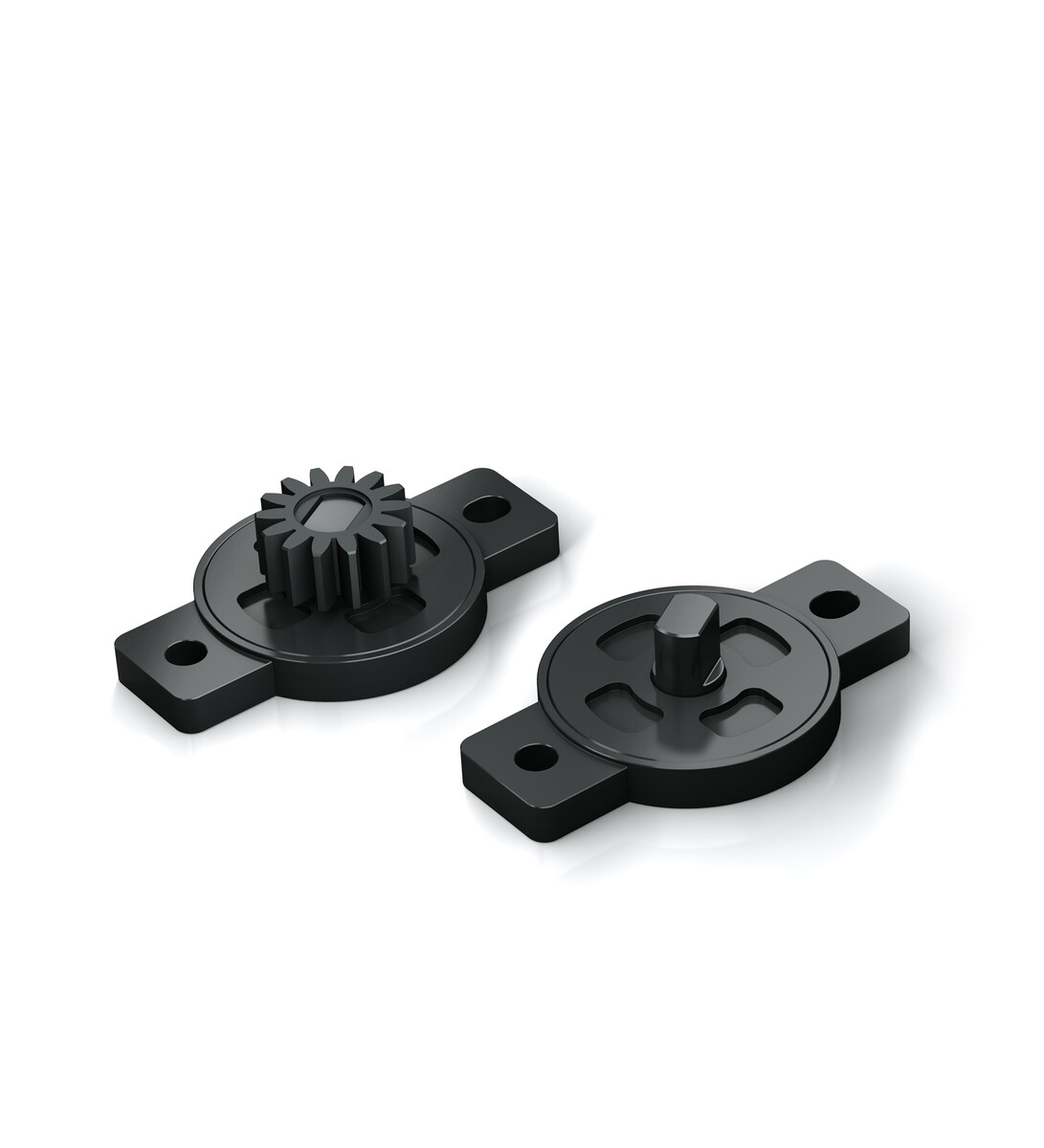

The damping direction of the ACE FRT-G2 product family with plastic body is rotating on both sides. The small rotary dampers can brake directly in the pivot point or linear through a gear and gear rack. ACE rotary dampers are maintenance-free and ready-to-install.

Technical data

Damping torque 0.2 Ncm to 1 Ncm

Damping direction bidirectional

Construction size Ø 15 mm

Rotational speed max. 50 rpm

Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range 0 °C to 50 °C

Pressure angle 20°

Material Outer body, Shaft, Gear: plastic

P.C.D. 7 mm

No. of teeth 14

Module 0.5

Mounting information

No axial or radial forces may be induced via the shaft.

Safety information

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special designs available on request. Toothed plastic racks (modules 0.5 to 1.0) are available for the rotary dampers with pinions.

Application Examples

Rotary Dampers - FRT-G2
ACE rotary dampers ensure the quiet shuffling of playing cards. Software controlled playing card shuffling machines such as this one are used throughout the world and are equipped with rotary dampers from the FRT-G2 product family...

Application Areas

  • linear slides
  • pneumatic cylinders
  • handling modules
  • machines and plants
  • swivel units
  • electro-mechanical drives
  • hydraulic devices
  • conveyor systems
  • crane systems
These compact, cost-effective machine elements are ideal as end position dampers in linear axes, in toolmaking and tool machines, in hydraulic and pneumatic equipment, handling equipment and other applications.
×
