Low Freq. Pneumatic Levelling Mounts
PAL-21

High-end in different sizes

Air Spring Elements with Automatic Level Control
Natural frequency 1.2 Hz to 5 Hz
Load range max. 950 kg

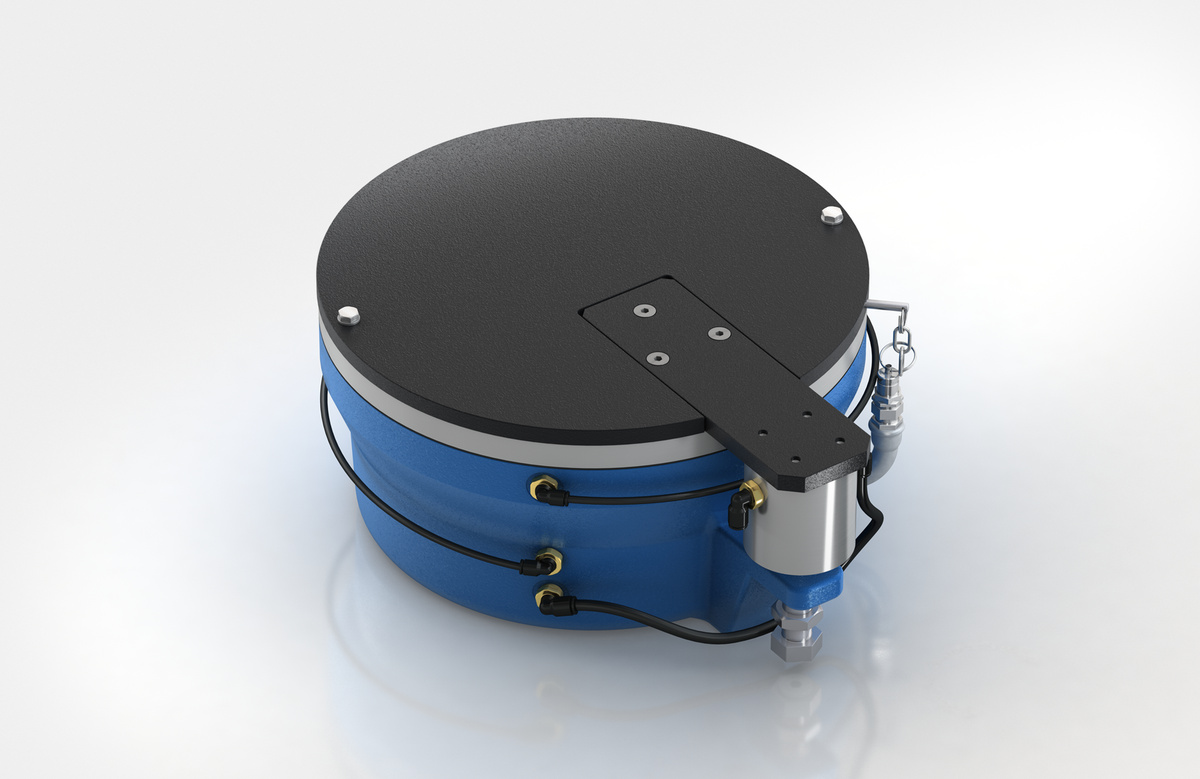

For superior low frequency vibration isolation: PAL high-quality air springs are designed for conditions in which the user wants to ensure that equipment is constantly level and isolated from vibrations at the same time.

The PAL system is an air spring system with level control that reacts quickly to loads and centre-of-gravity changes and adjusts deviations from the pre-set position automatically. The system is available in three different sizes for loads from 36 kg to 42,000 kg per air spring with a natural frequency up to 1.7 Hz. Customised isolators with a natural frequency of up to 0.5 Hz can be manufactured upon request.

The springs ensure perfect results in sensitive areas such as on measuring equipment, aircraft or automotive test stations, as well as in other areas, such as foundation mountings.

Technical data

Natural frequency 1.2 Hz to 5 Hz

Load range max. 950 kg

Stroke max. 10 mm

Standard colour blue

Operating temperature range -30 °C to +50 °C

Material Outer body: painted steel; Isolation medium: neoprene

On request

Special designs

Application Examples

Low Freq. Pneumatic Levelling Mounts - PAL-18 to PAL-1000
Measurements made on a glass measuring table led to unusable results because the isolator used was unable to cope with the lateral stiffness of the products used. Only the low-frequency pneumatic isolators PAL 21 from ACE with automatic level...

Application Areas

  • test and calibration appliances
  • aircraft and car testing stations
  • foundation mounting
The springs ensure perfect results in sensitive areas such as on measuring equipment, aircraft or automotive test stations, as well as in other areas, such as foundation mountings.
×
