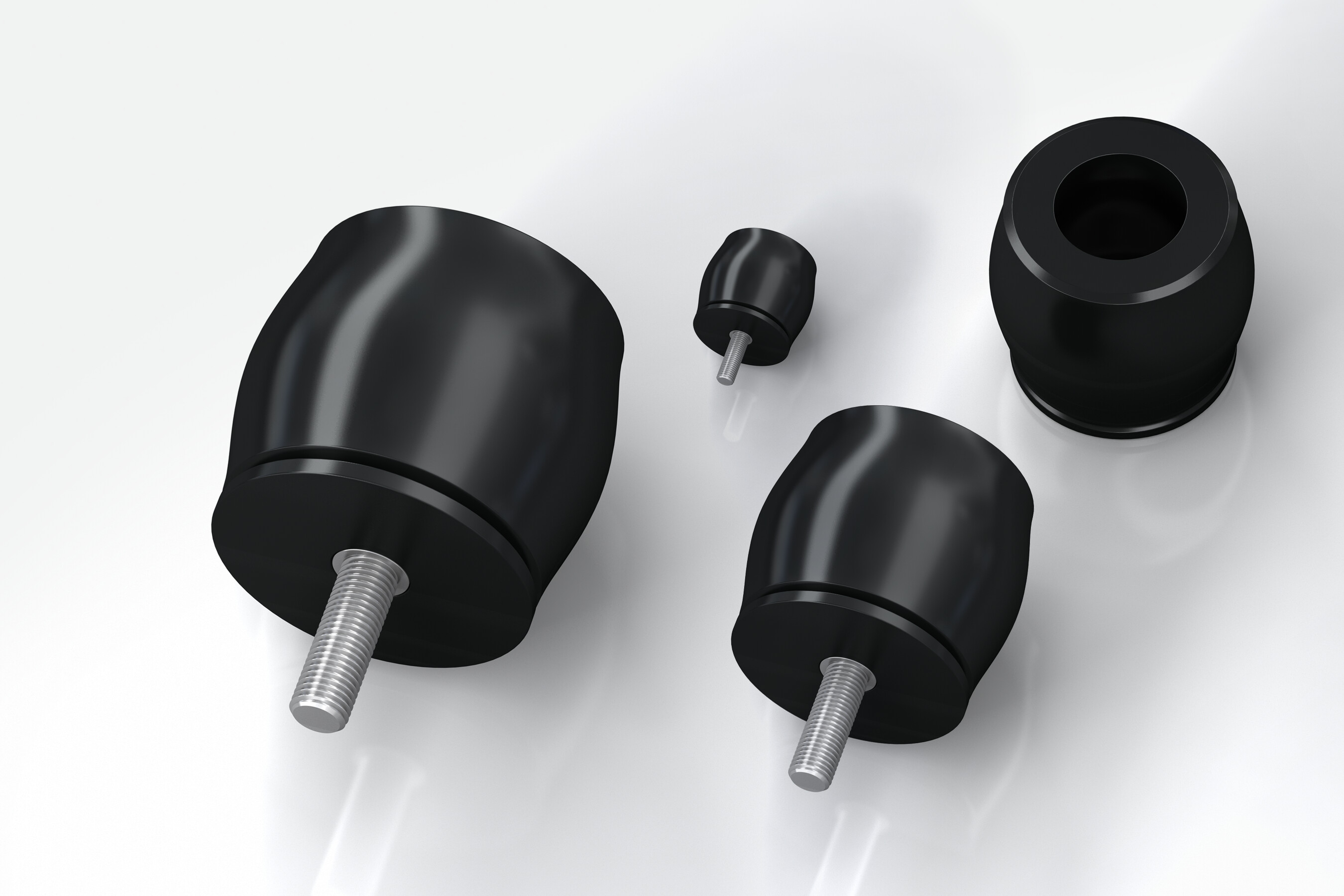

TUBUS TA
Safety damping for the loading mechanism of lathes
Mech. Engineering & Automation
electro-mechanical drives, handling modules, pneumatic cylinders, linear slides, machines and plants
Higher loading speed with simultaneous protection of the loading mechanism for lathes in the automotive industry

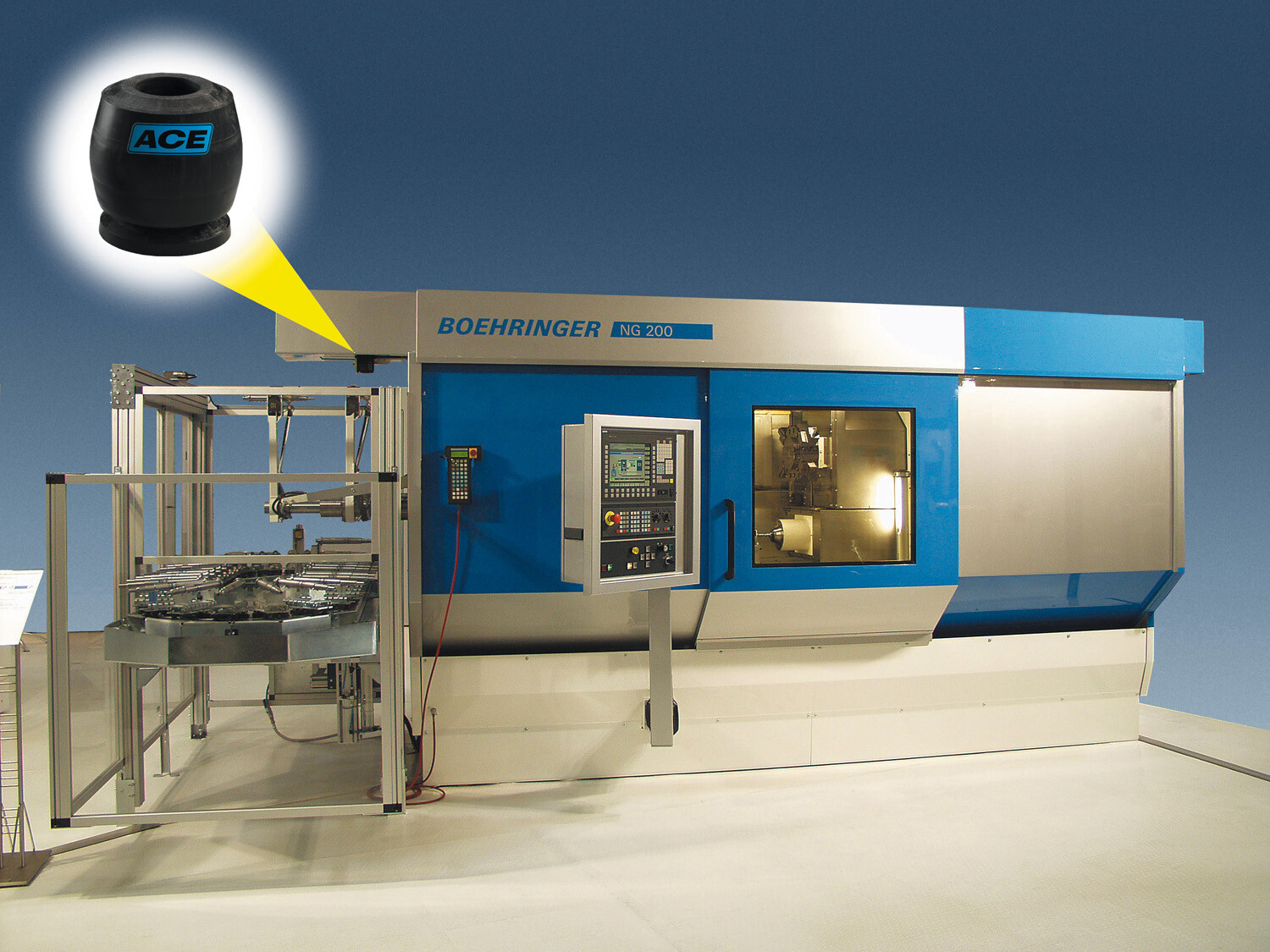

ACE TUBUS profile dampers protect the integrated loading station on a new high speed machining centre. The ACE TUBUS damper is designed to prevent overrun on the high speed loading station of a Camshaft machining centre used in the automobile industry. In the event that the drive train fails during operation or incorrect data is inputted the ACE TUBUS damper absorbs the impact preventing costly damage to the machine. The TA98-40 TUBUS damper impressed engineers with this exceptionally long service life in operation. When used as an emergency stop the TUBUS damper can absorb up to 73 % of the impact energy.
MC5 to MC75
Brake components for pneumatic linear modules

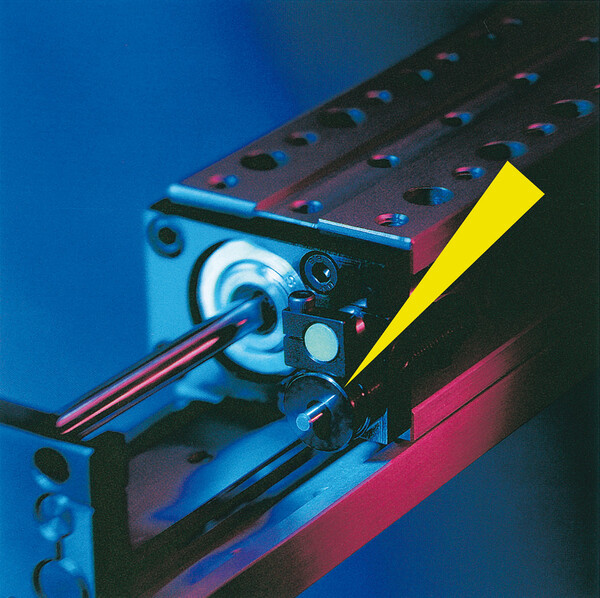

Pneumatic linear modules in miniature slide systems ensure high speeds with constant repeat accuracy. In this design, pneumatic end-of-travel damping was deliberately ...
Learn More
MC33 to MC64
Braking systems for gripper carriages
In this design, driven by rodless pneumatic cylinders, two gripper carriages move independently of each other at speeds of 2 to 2.5 m/s. ACE industrial shock absorbers from the produc...
Learn More
SC190 to SC925
Damping system for pick and place machines

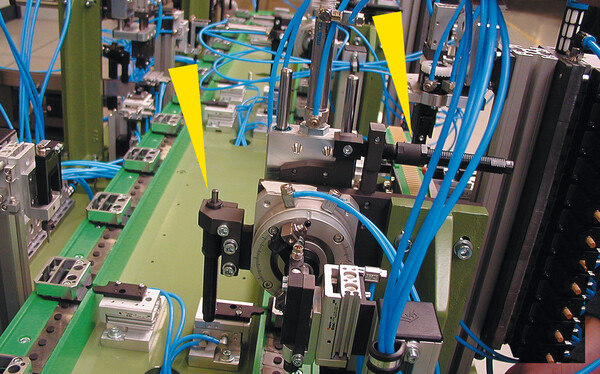

ACE miniature shock absorbers optimize production with minimum expenditure. The cycle rate for an assembly line producing electronic components was increased to 3,600 units/...
Learn More
TUBUS TA
Safety damping for the loading mechanics of feeding systems

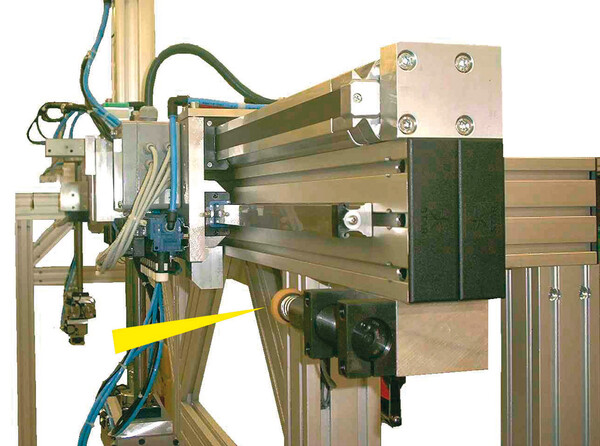

Preventing expensive damage after software errors or power outages is the task of two TUBUS TA17-7 profile dampers. Installed in various li...
Learn More
TUBUS TR
End position damping for hydraulic cylinders in test systems
In a testing facility for vehicle tanks, the test specimens are pulled out of the water with a support arm. A hydraulic cylinder carries ...
Learn More
TUBUS TR-HD
Safety damping for the loading mechanics of feeding systems
Silicon wafers serve as starting products for solar cells and are produced in special furnaces. Optimum positioning of the wafers is a basi...
Learn More
SLAB 030 to SLAB 300
Noise and impact reduction for cable trailing systems in the manufacturing industry
The customizable ACE damping pads SLAB 030 to SLAB 300 protect man and machine. At the begi...
Learn More
