Vibration Control
TYPESLoad min. kgLoad max. kgHardness mmM mm
CFBMH783010W44.1110.145M10
CFBMH783010M108.9272.360M10
CFBMH783012W44.1110.145M12
CFBMH783012M108.9272.360M12
CFBMH923510W71.4178.545M10
CFBMH923510M128.5321.260M10
CFBMH923512W71.4178.545M12
CFBMH923512M128.5321.260M12
CFBMH1063812W102.8257.045M12
CFBMH1063812M183.5458.960M12
CFBMH1063816W102.8257.045M16
CFBMH1063816M183.5458.960M16
CFBMH1254316W143.6358.945M16
CFBMH1254316M301.8754.660M16
CFBMH1444816W285.5713.845M16
CFBMH1444816M546.61,366.460M16

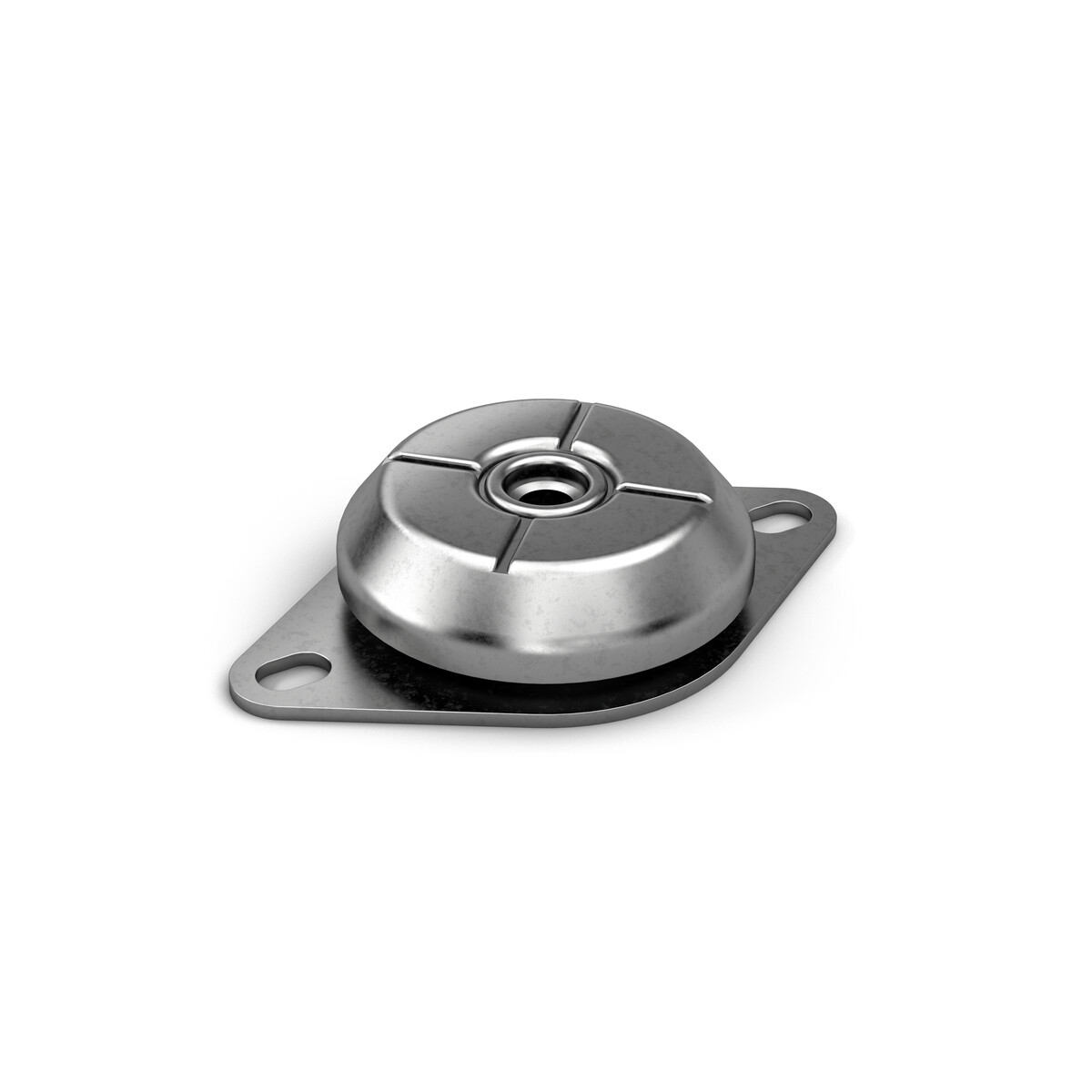

Rubber-Metal Isolators
CFBMH-1

Ideal for all environments and spatial axes

Highly resilient vibration isolators
Natural frequency 5.9 Hz to 16.2 Hz
Load range 44.1 kg to 1,366.4 kg

Breakaway protection, even when things get tough: The Hard Bell Mounts product family cup elements protect constructions and components of all types against vibrations and impacts. They are characterised by their breakaway protection design, compact construction and customisable installation length. They can also be tilted in the x-, y- and z-axes. As standard, they are equipped with neoprene/natural rubber cushioning material and can also be covered with silicone for a highly dampening effect in extreme temperatures or for heavy impacts.

The machine elements can be used for all loads: shear, compression and tension. They are available with a central thread or through borehole.

The ACE elements secure machines, electronic systems and all other components reliably in harsh environments, and keep damaging vibrations at a distance.

Technical data

Natural frequency 5.9 Hz to 16.2 Hz

Load range 44.1 kg to 1,366.4 kg

Operating temperature range -40 °C to +70 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel; Isolation medium: natural rubber

Note

Fail-safe

Mounting information

Can be installed in all spatial axes. Can be used for shear, compressive and tensile loads. Except CCF.

On request

Models suitable for temperatures from -60 °C to +150 °C with high-damping silicone. Models available with centric thread or through-hole. All metal parts galvanised, aluminium or stainless steel available on request.

Application Examples

CM-VSC - Silence in the lift shaft
CM-VSC - Silence in the lift shaft
The renovation of lifts is a demanding project. Nowadays, in addition to increased travelling comfort, they should also ensure that the means of transportation is accessible to the handicapped and that they are quiet. The fact that this was successfully achieved in this case, despite having a larger drive in comparison with the previous solution, is also thanks to the ACE rubber-metal ...

Application Areas

  • compressors and ventilation systems
  • electronic systems
  • vehicle technology
  • aircraft construction
  • off road
  • shipbuilding
  • vibrators and crushing systems
  • military
The ACE elements secure machines, electronic systems and all other components reliably in harsh environments, and keep damaging vibrations at a distance.
×
