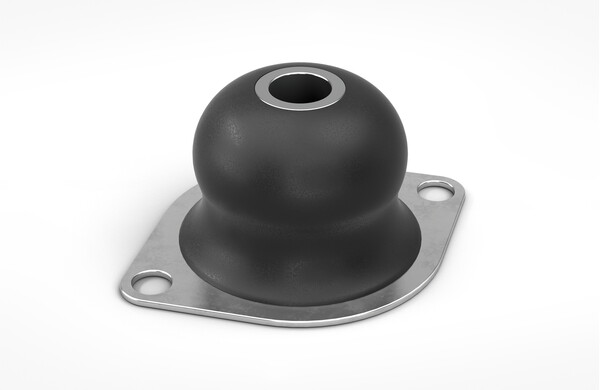

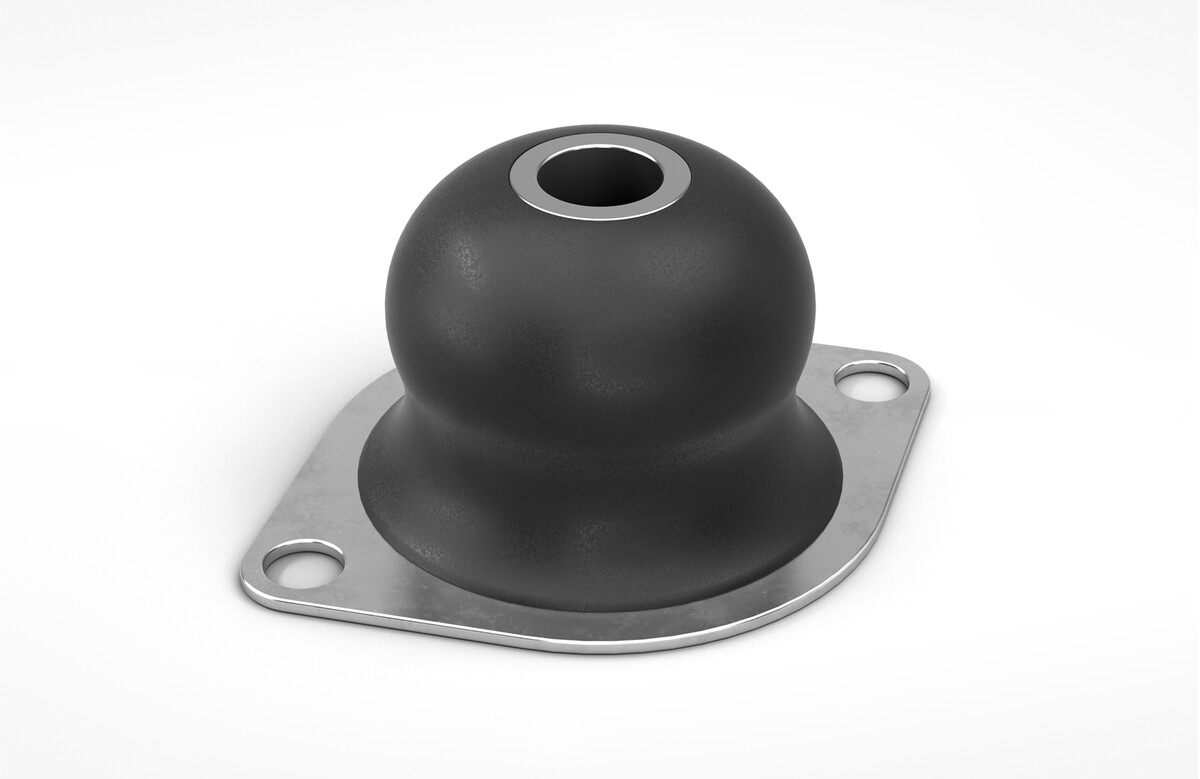

Rubber-Metal Isolators
BM-5064

Excellent isolation of light loads

Low-Frequency Vibration Isolators
Natural frequency 8.0 Hz to 16.0 Hz
Load range 0.7 kg to 8.2 kg

Small, compact vibration absorbers: The machine elements of the product family Bubble Mounts are designed especially for use under load in vertical compression loads. They are easy to install and available in two low frequency vibration isolation versions that can withstand loads between 0.7 kg and 8.2 kg. Despite being small, they offer high-impact cushioning, which can be increased by the use of silicone upon request. Their natural frequency with a nominal load of 8 Hz is so low that dangerous vibrations can, in most cases, effectively be eliminated.

ACE's low frequency vibration absorbers BM reliably protect electronic and medical equipment, aircraft avionics and computers. They can also be used for effectively isolating small pumps and compressors.

Technical data

Natural frequency 8.0 Hz to 16.0 Hz

Load range 0.7 kg to 8.2 kg

Operating temperature range -30 °C to +80 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel; Isolation medium: Neoprene (chloroprene rubber)

Note

Small, light design.

On request

Rubber part made of neoprene also available in silicone. Other special options.

Application Examples

Rubber-Metal Isolators - Bubble Mounts
In a luxury motorhome, two compressors, each weighing 7.3 kg, are responsible for the air supply system of the suspension, doors and toilets when parked. These are poorly insulated as standard, so their vibrations are transmitted to the bodywork...

Application Areas

  • medical technology
  • computers
  • electronic systems and controls
  • air and space travel
  • off road
  • military
  • electro-technology
ACE's low frequency vibration absorbers BM reliably protect electronic and medical equipment, aircraft avionics and computers. They can also be used for effectively isolating small pumps and compressors.
×
