Rubber-Metal Isolators

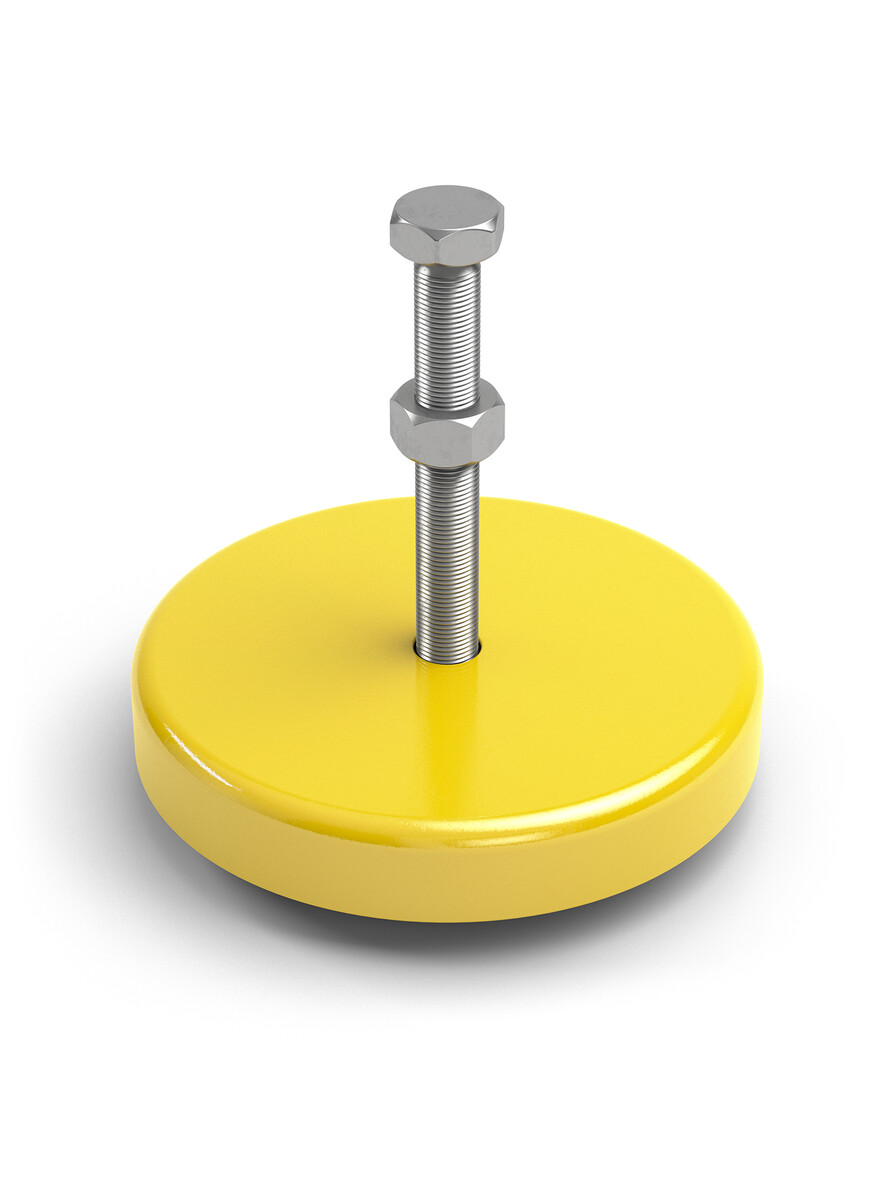

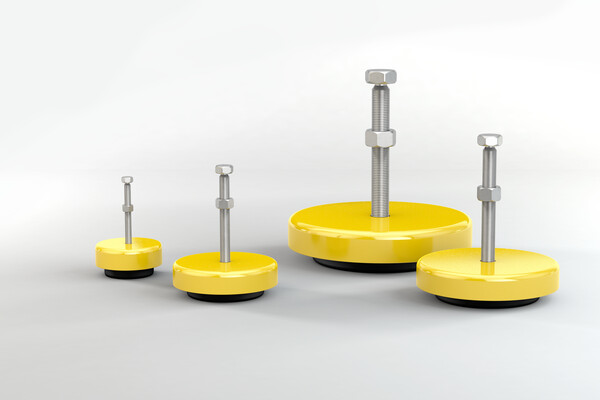

Levelling Mounts

Balancing elements for stability

Height-Adjustable Machine Feet
Natural frequency 8 Hz to 24 Hz

Stability and protection against impacts: Machines and systems placed on the adjustable machine feet in ACE's Levelling Mounts product family can be stabilised perfectly. These maintenance-free machine elements can be levelled extremely accurately, compensating for floor unevenness and so ensuring the stability of anything standing on them. This protects the loads placed evenly on them against damaging impacts and vibrations, reducing operational noise.

They are available in thread sizes of M10 to M24 and are suitable for loads from 45 kg to 5,900 kg. Special types are also available, such as feet with special vibration isolation.

Using LEV levelling mounts, every machine can be kept quiet and safe, above all in production and processing centres, but also in the construction of production lines, assembly stations and many other applications.

Technical data

Natural frequency 8 Hz to 24 Hz

Operating temperature range -30 °C to +80 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel, painted; Isolation medium: Neoprene (chloroprene rubber)

Application field machines and plants, transport roads, conveyor systems, assembly stations, small presses, compressors and ventilation systems, test and calibration appliances

Note

Easy to level. Compensates for floor unevenness.

On request

Special vibration-isolating feet according to design and custom-made product. Other special options.

×
