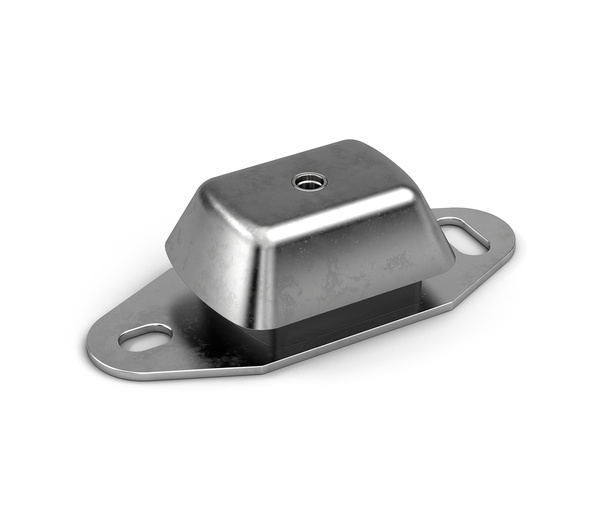

Rubber-Metal Isolators

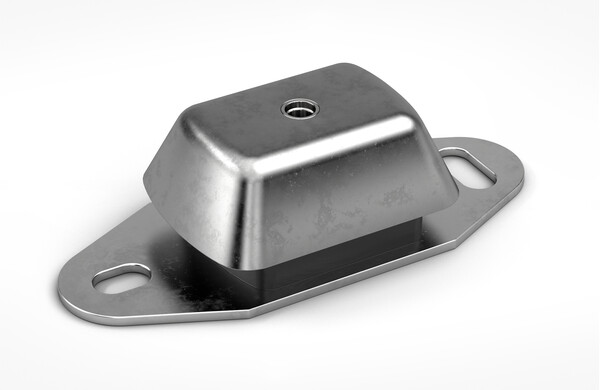

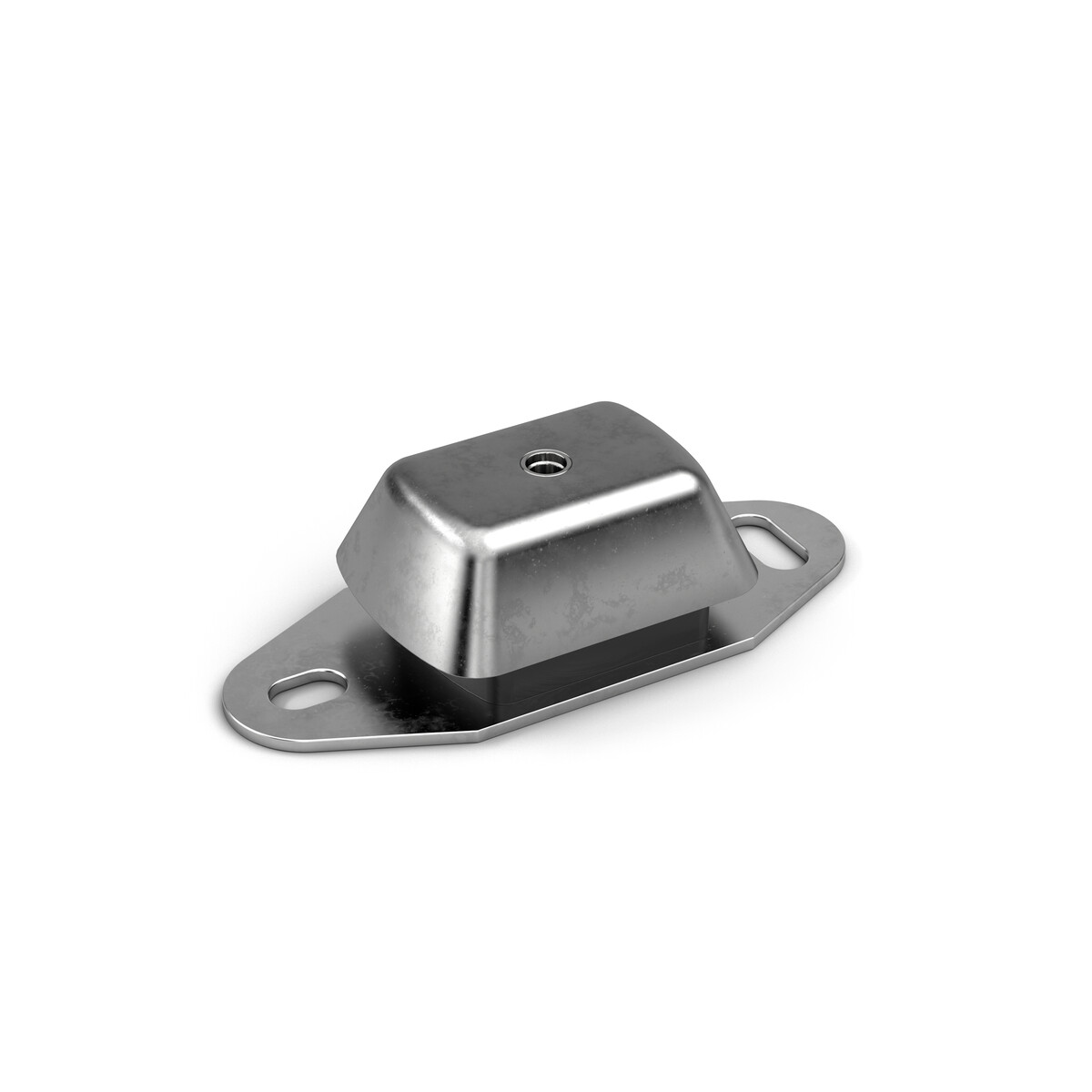

CCFQ

Stability even in the toughest applications

Ideal for mobile applications
Natural frequency 6.3 Hz to 12.3 Hz
Load range 14.7 kg to 897.4 kg

Versatile, robust and maintenance-free: The Marine Mounts product family machine feet can be installed immediately and are characterised by being break-proof. They are made from galvanised metal, with the inner part made from neoprene or natural rubber, which is used as the cushioning material. Their construction is designed so that the longitudinal stiffness is two and a half times that of vertical stiffness and its lateral stiffness is 75 % that of the vertical stiffness, underlining the robustness and versatility of the isolators. Moreover, the Marine Mounts features a natural frequency of just 7.8 Hz under maximum load.

Typical applications are ship engines, diesel generators and other energy generation equipment.

Technical data

Natural frequency 6.3 Hz to 12.3 Hz

Load range 14.7 kg to 897.4 kg

Operating temperature range -40 °C to +70 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel; Isolation medium: natural rubber

Note

Fail-safe. Versatile. Low natural frequency.

Mounting information

Can be installed in all spatial axes. Can be used for shear, compressive and tensile loads. Different stiffness values depending on operating direction.

On request

Special options.

×
