Clamping Elements

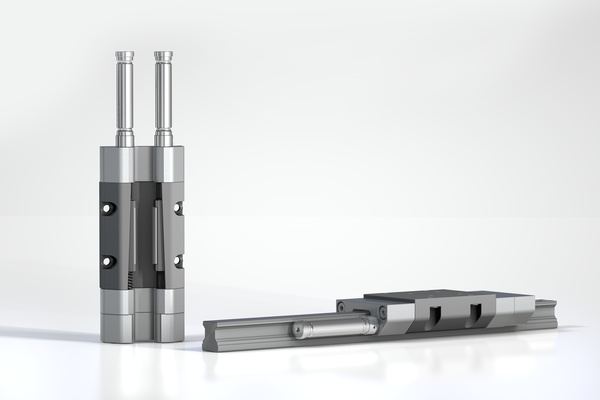

LOCKED LZ-P

Certified safety clamping

Rail Clamping for Z-Axes
Holding forces 1,500 N to 2,500 N

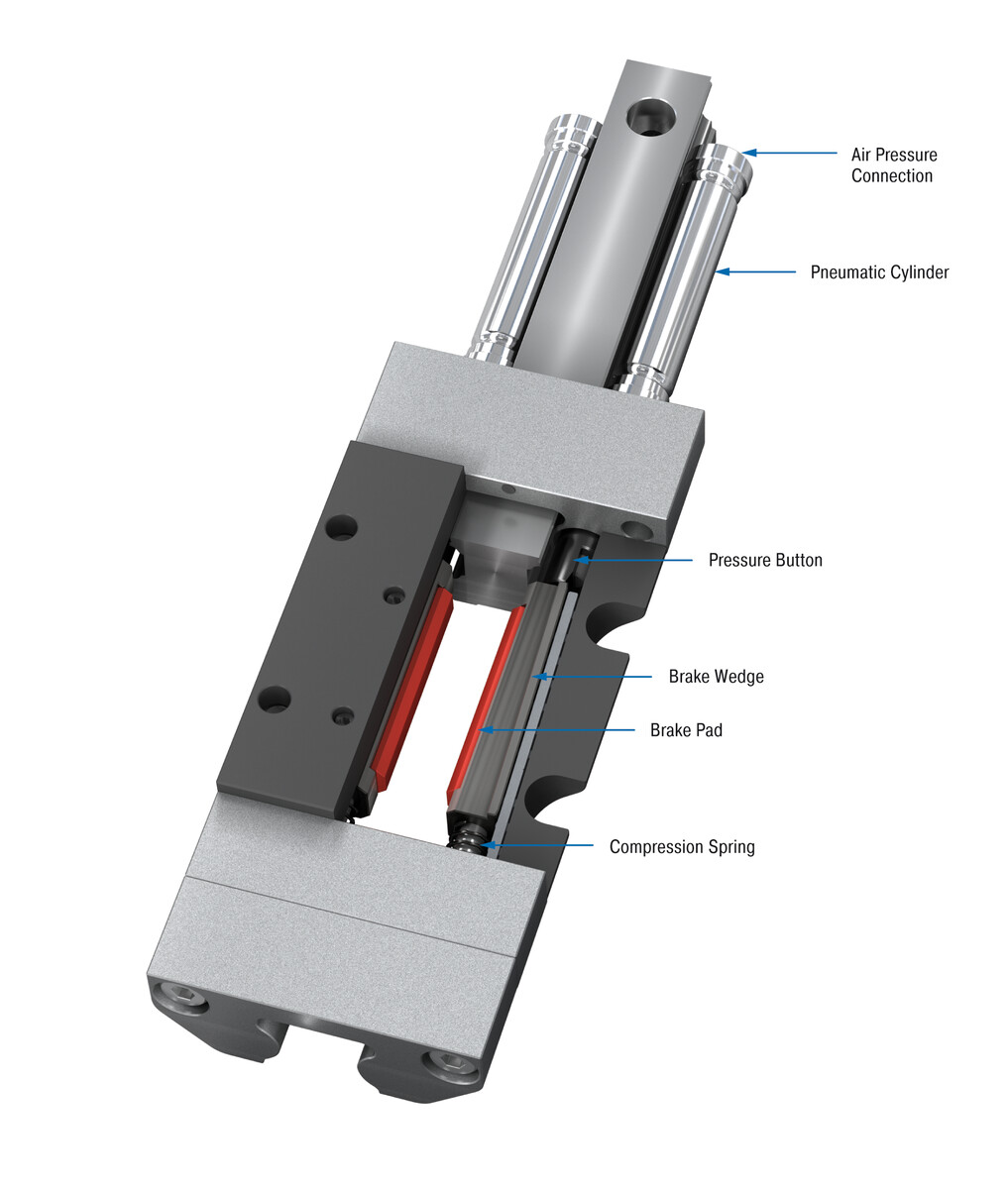

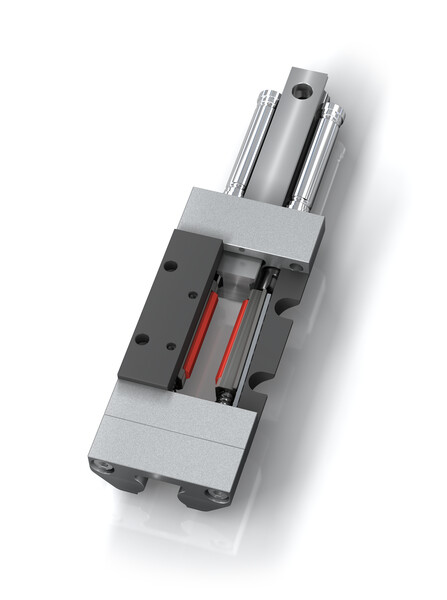

Innovative and BG certified: The pneumatic clamping elements LOCKED LZ-P have been specially designed for safe, reliable clamping on the vertical or Z-axes. The wedge principle makes sure that the gravity loaded axis does not drop. The brake wedges are pushed on both sides against the flat parallel surfaces of the guide rail in case of a loss of pressure.

Initially developed for Bosch Rexroth rails in sizes 15 mm and 25 mm, a test certificate from the trade association was awarded after extensive tests on these clamping elements. Further certifications from other rail manufacturers and sizes are prepared and can be implemented within the shortest time. Users achieve holding forces of up to 2,500 N.

Pneumatic clamping elements LOCKED LZ-P are used in all sectors of modern mechanical engineering and customised machine tools.

Technical data

Holding force 1,500 N to 2,500 N

Rail sizes 15 mm and 25 mm Bosch Rexroth

Clamping cycles 1,000,000

Mounting Vertical

Effective direction Z-axes toward gravity

Material Outer body: tool steel; Brake components: steel

Pneumatic medium dried, filtered air

Operating temperature range 0 °C to 60 °C

Application field Z-axes, vertical conveyor systems, jacking applications

×
