Safety Products
TYPESEnergy capacity emergency use Nm/cycleStroke mm
CD-88-451,20045
CD-88-5095050
CD-88-531,60053
CD-88-561,68056
CD-88-56-H2,13056
CD-88-1455,370145
CD-88-145-H7,690145

Safety Dampers

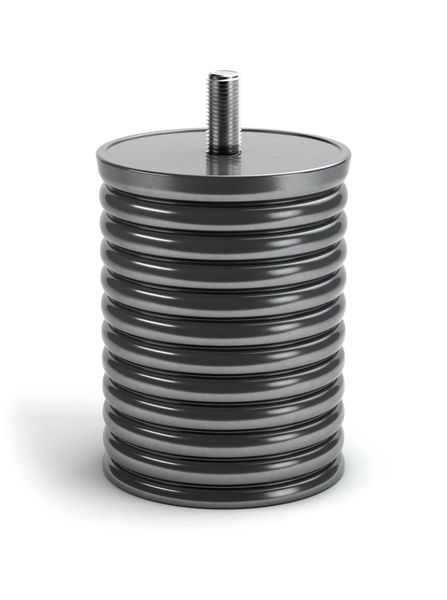

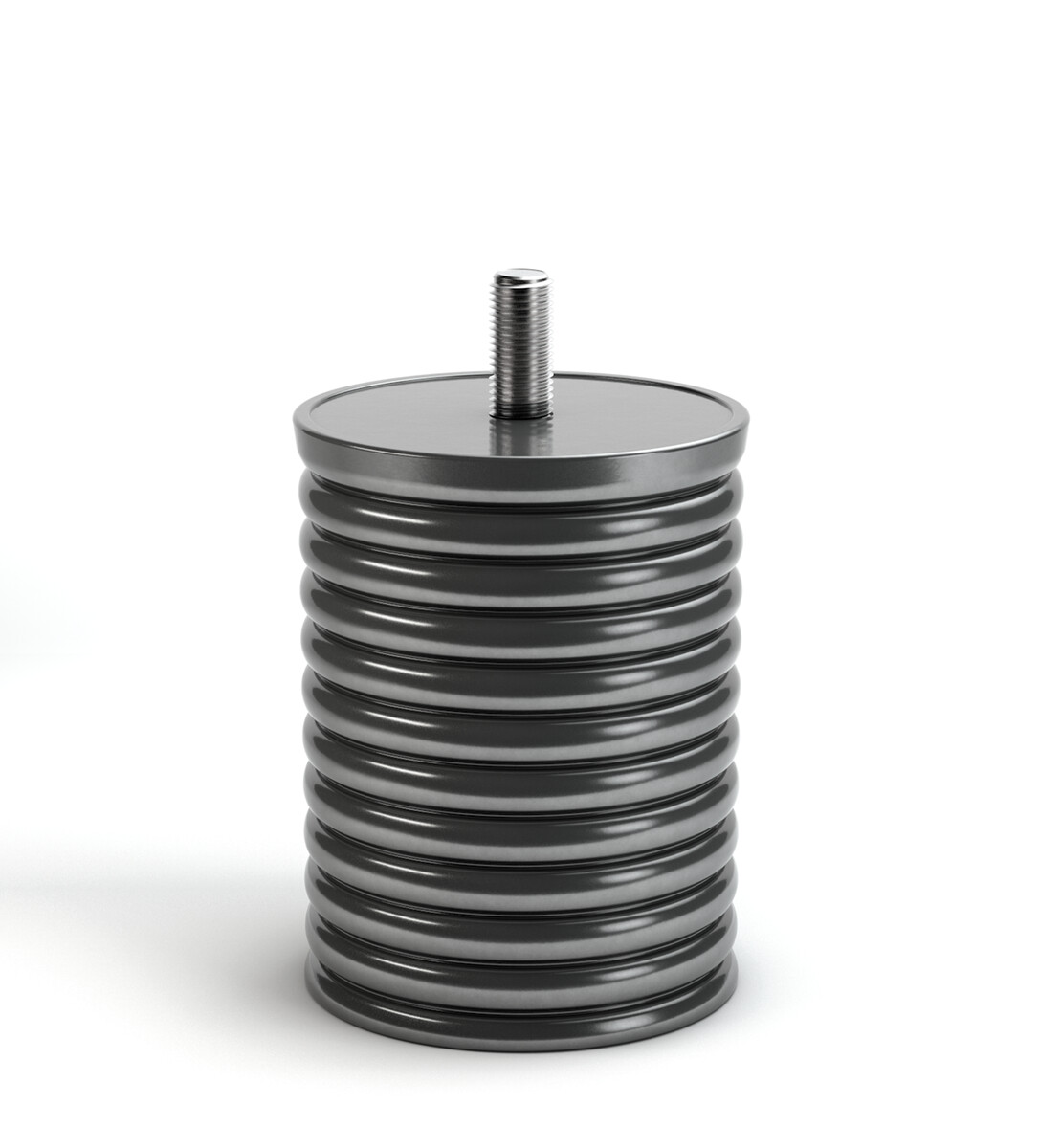

CD 88

Highly effective aluminium and steel energy absorption elements

Single-use emergency stop dampers
Energy capacity 950 Nm/cycle to 7,690 Nm/cycle
Stroke 45 mm to 145 mm

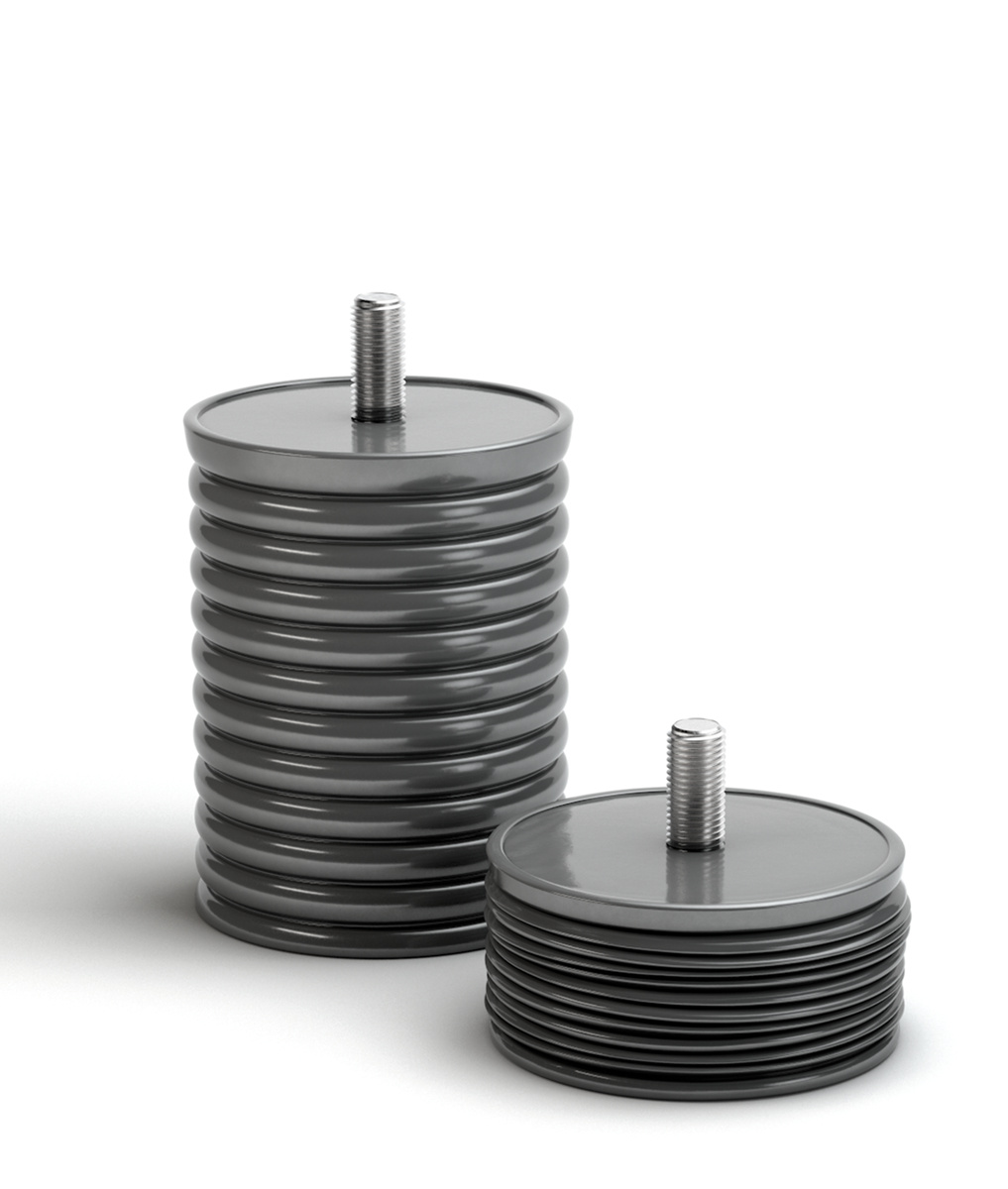

Single-use, yet extremely useful protection: With its crash dampers, ACE offers engineers a single-use solution as a high-efficiency plant safety option. Each crash element, made of custom designed aluminium piping or steel, absorbs even high inertia forces almost instantaneously in the event of an impact. When arranged in series or parallel, the crash elements can absorb even higher energy values at once.

Other advantages of the emergency stop systems developed in sophisticated test series are their simple installation, ease of retrofitting in existing plants, speed of replacement and reduced downtime after a crash. The deformation of the crash box also allows the incident to be reconstructed, ideally helping avoid the same problem in future.

With these benefits, the crash dampers are already protecting many linear axes in robotics applications as well as the limit positions of tool machines, conveyor systems and high bay rack feeders.

Technical data

Energy capacity 950 Nm/cycle to 7,690 Nm/cycle

Stroke 45 mm to 145 mm

Energy absorption 98 %

Reacting Force 26,000 N to 80,000 N

Operating temperature range -30° C to + 100° C

Standard colour Umbra grey RAL 7022

Construction size 88 mm

Material Outer body: aluminium

Mounting In any position

Impact velocity range max. 5 m/s

Note

The single-use damper must be replaced after each impact.

Safety information

Where necessary, use thread locking fluid to secure the threaded pins.

On request

Also available with centring pins and other special versions.

×
