Door Dampers

The safe way to close doors

Energy capacity 75 Nm/Cycle to 190 Nm/Cycle
Stroke 50 mm to 120 mm

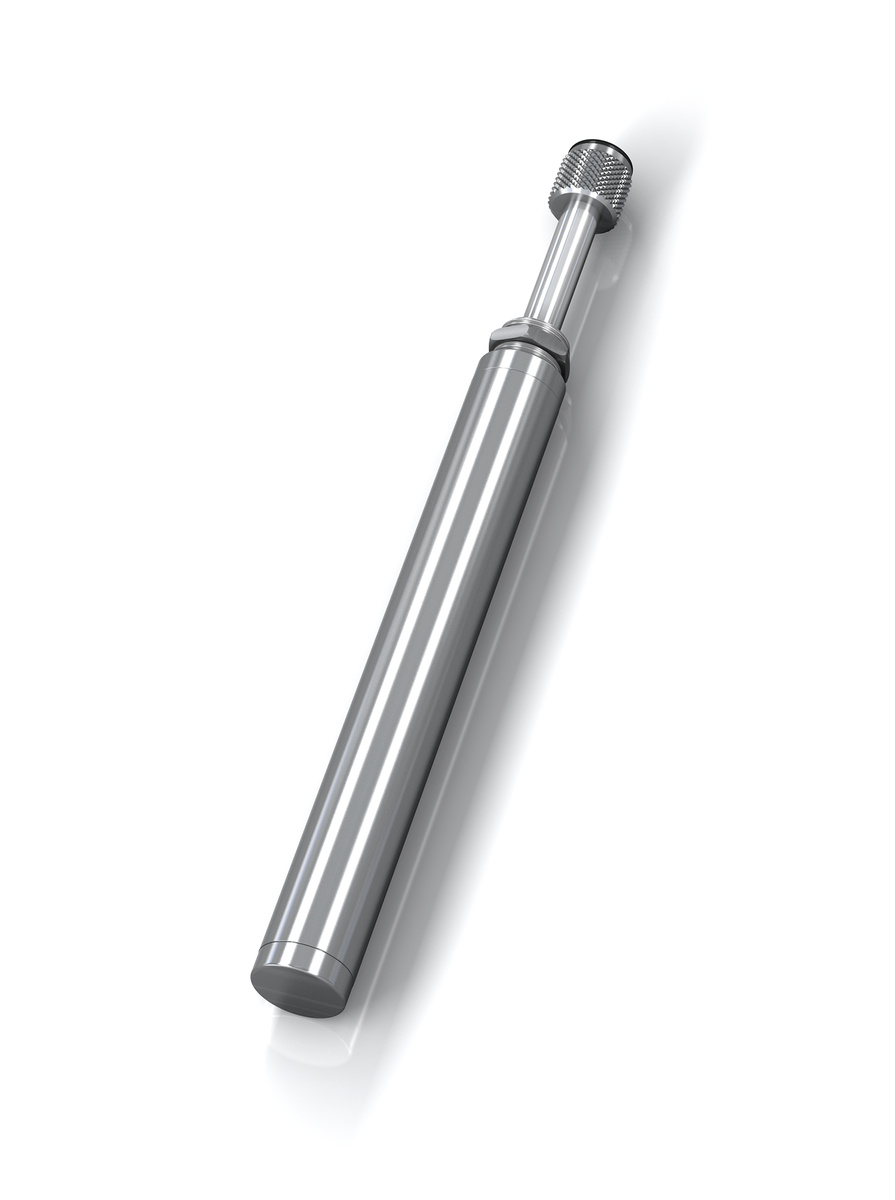

Safety for individuals, doors and frames: whether acting single-sided or double-sided, ACE TD-28 and TDE-28 dampers securely prevent doors of all types and many weight classes from slamming shut. This is because the energy for stroke lengths between 50 mm and 120 mm is absorbed so reliably, that people and their possessions are protected.

The desired attenuation force is set manually; as a result, this door damper can absorb energy up to max. 190 Nm/stroke. Impact masses up to a maximum of 7,000 kg can be overcome depending on which type. ACE door dampers are manufactured to be high quality and durable with hard chrome-plated piston rod and galvanised steel cylinder tubes.

Practical and safe, these door dampers are suitable for manual or automatically operated hinged and sliding doors, as is often seen in the elevator and furniture industries, as well as in building technology.

Technical data

Energy capacity 75 Nm/Cycle to 190 Nm/Cycle

Stroke 50 mm to 120 mm

Outer body diameter Ø 28 mm

Piston rod diameter Ø 8 mm

Free travel TDE: marginal

Operating temperature range -20 °C to +80 °C

Adjustment Pull the piston rod fully out and turn the knurled rod end button. The internal toothed adjustment allows the damping to be separately adjusted for each side. As a result of the adjustment mechanism the overall length L can be increased by up to 4 mm (TDE-28) or 8 mm (TD-28).

Material Outer body: zinc plated steel; Piston rod: hard chrome plated steel

Impact velocity range 0.1 m/s to 2 m/s

Strokes per minute max. 10


ACE door dampers are single ended or double ended adjustable hydraulic shock absorbers.

On request

Special oils, other special options and special accessories are available on request.
