Rubber-Metal Isolators

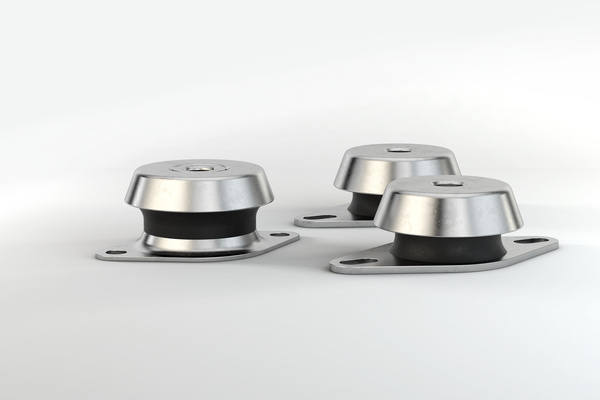

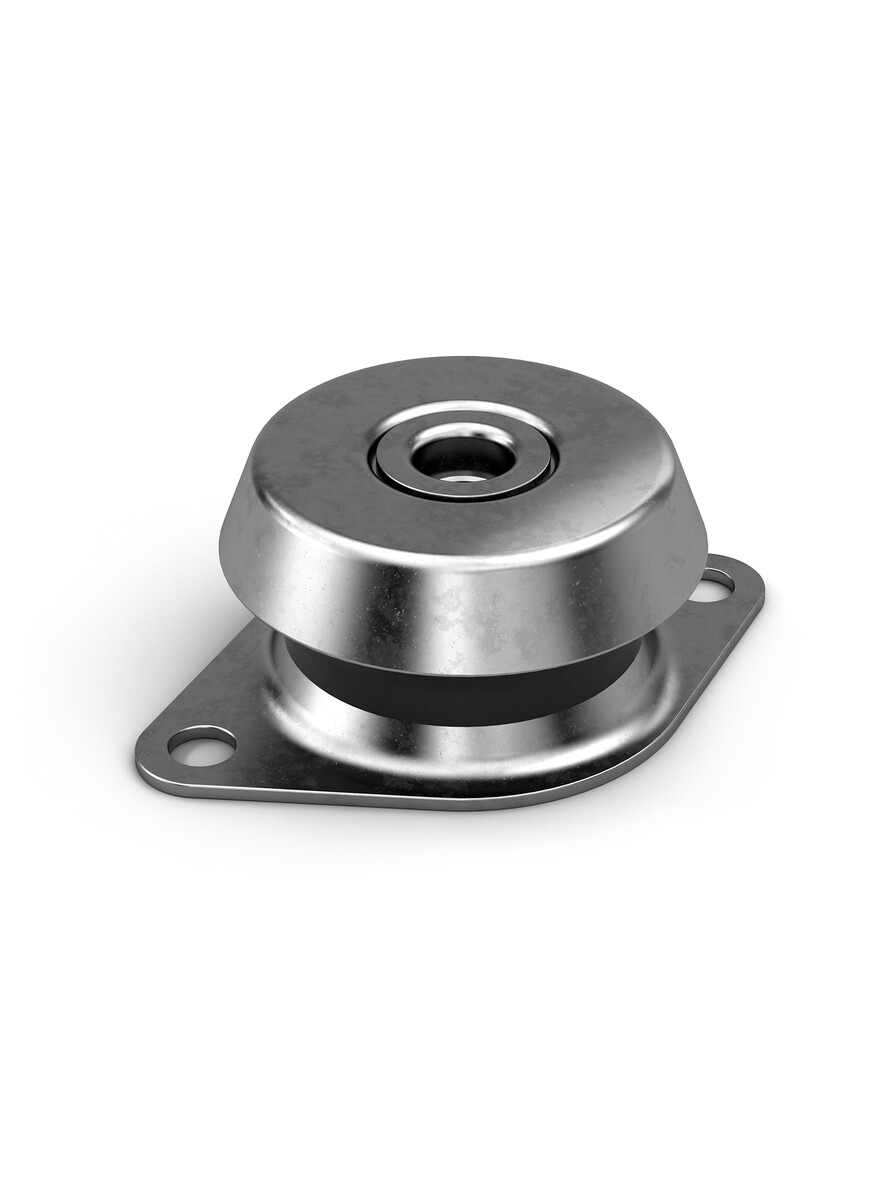

Light Bell Mounts

Vibration damper for light loads

Extremely light and versatile
Natural frequency 8.3 Hz to 13.5 Hz
Load range 10.2 kg to 132.6 kg

Self-protection for all areas: With a metal hood, Light Bell Mounts reliably protect against ozone, UV rays, diesel and oils. Ideal for light loads, these vibration dampesr come standard with corrosion protection on all metal components. In addition to various rubber compounds, these insulators are also available in stainless steel.

Designed for temperature ranges between -40 °C bis 70 °C, they can be mounted in all spatial axes, which means they can be used in pushing, or pushing and pulling directions. Light Bell Mounts are tear-proof and therefore perfect for applications with high safety requirements.

The insulators are used in almost all industrial applications. They are ideal for diesel engines with 1, 2 or 3 cylinders, pumps, and power generators.

Technical data

Natural frequency 8.3 Hz to 13.5 Hz

Load range 10.2 kg to 132.6 kg

Operating temperature range -40 °C to +70 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel; Isolation medium: natural rubber

Application field compressors and ventilation systems, generators, Pumps, diesel and ship equipment

Note

Fail-safe. For light loads.

Mounting information

Can be installed in all spatial axes. Can be used for shear, compressive and tensile loads.

On request

Available in other rubber compounds. Available in stainless steel on request.

×
