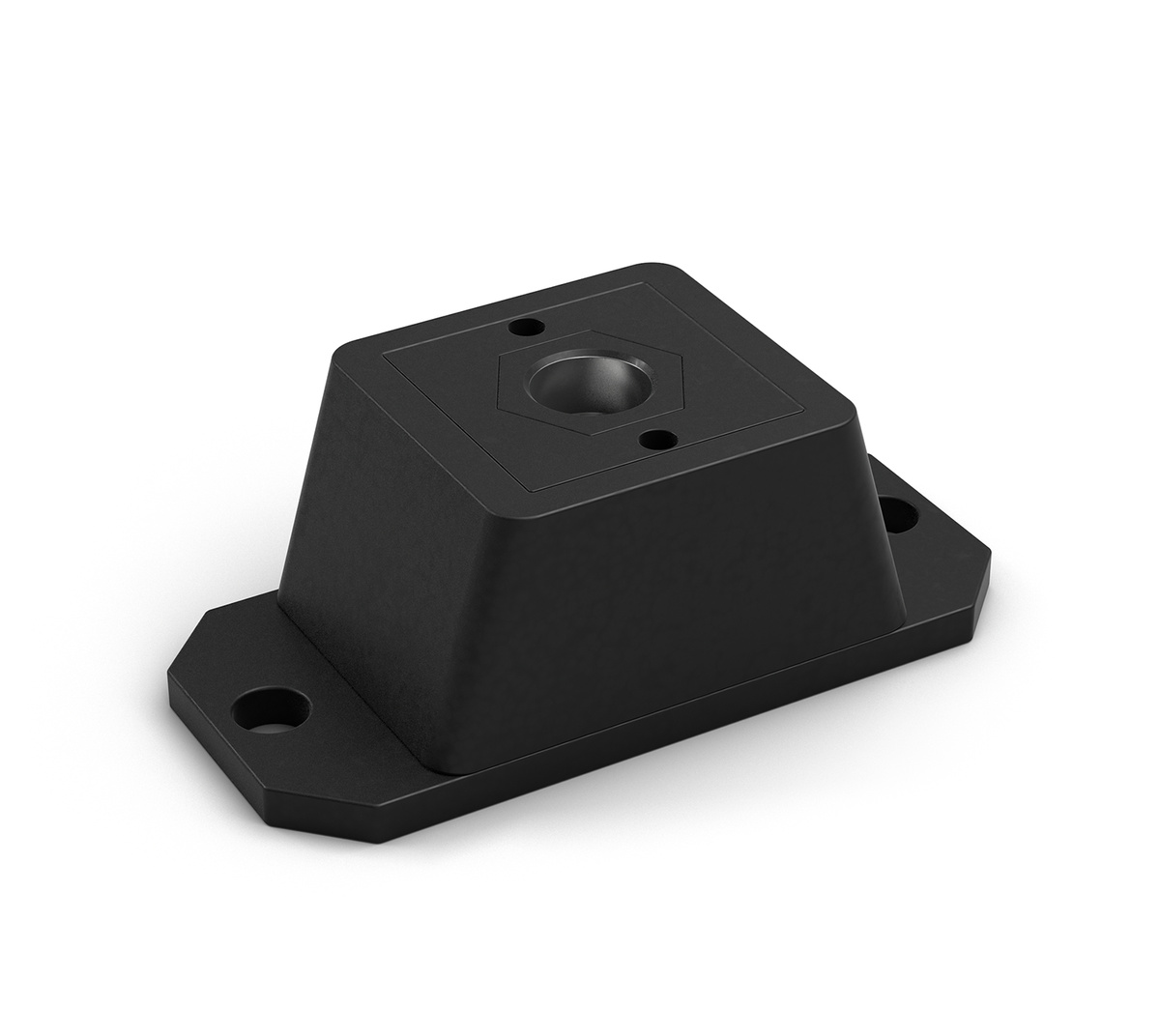

Rubber-Metal Isolators
COM-5216

Ideal for preventing unbalanced masses from vibrating

Pre-tensioned High-Performance Bearing Surface
Natural frequency 7.5 Hz to 14.5 Hz
Load range 10.9 kg to 317.5 kg

Effective isolation of machines and plants: The Compression Mounts product family consists of robust heavy duty bearings, which are particularly good at preventing vibrations and structure-borne noise due to unbalanced masses. These prestressed machine elements are maintenance-free and improve efficiency in all low frequency application ranges above about 15 Hz. Using a linkage, the natural frequency of the system can be reduced to between 6 and 10 Hz. Interfering frequencies above 900 rpm (15 Hz) are effectively isolated. At 1,500 rpm (25 Hz) the level of isolation is 90 %.

Made from galvanised metal and neoprene or natural rubber, they can be used at temperatures between -30 °C and +80 °C.

The heavy duty mount is normally used in vertical load applications - above all for industrial machines, small motors, pumps and compressors.

Technical data

Natural frequency 7.5 Hz to 14.5 Hz

Load range 10.9 kg to 317.5 kg

Operating temperature range -30 °C to +80 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel; Isolation medium: Neoprene (chloroprene rubber)

Note

Not fail-safe. Low-frequency application range from about 15 Hz.

Mounting information

Suitable for loads in pressure direction.

On request

Special options.

Application Examples

Rubber-Metal Isolators - Compression Mounts
An air conditioning splitter transmitted vibrations from the roof of the house to adjacent living and sleeping rooms. Using the free VibroChecker app from ACE, the homeowner was able to convert his iPhone into a measuring device and, thanks to the...

Application Areas

  • compressors and ventilation systems
  • centrifuges
  • vibrators and crushing systems
  • blowers
  • off road
  • shipbuilding
  • military
  • injection moulding plants
  • control boxes
The heavy duty mount is normally used in vertical load applications - above all for industrial machines, small motors, pumps and compressors.
×
