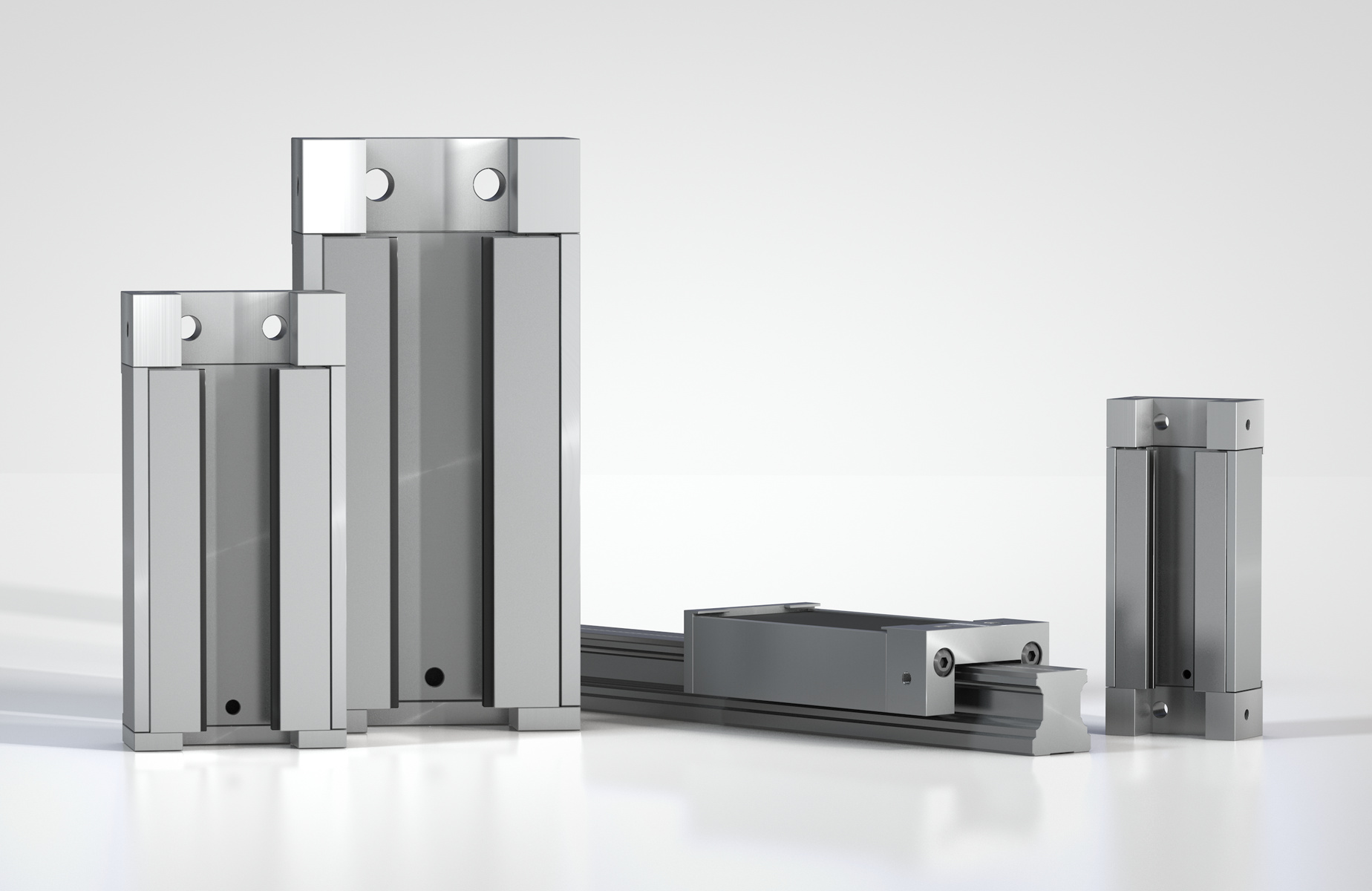

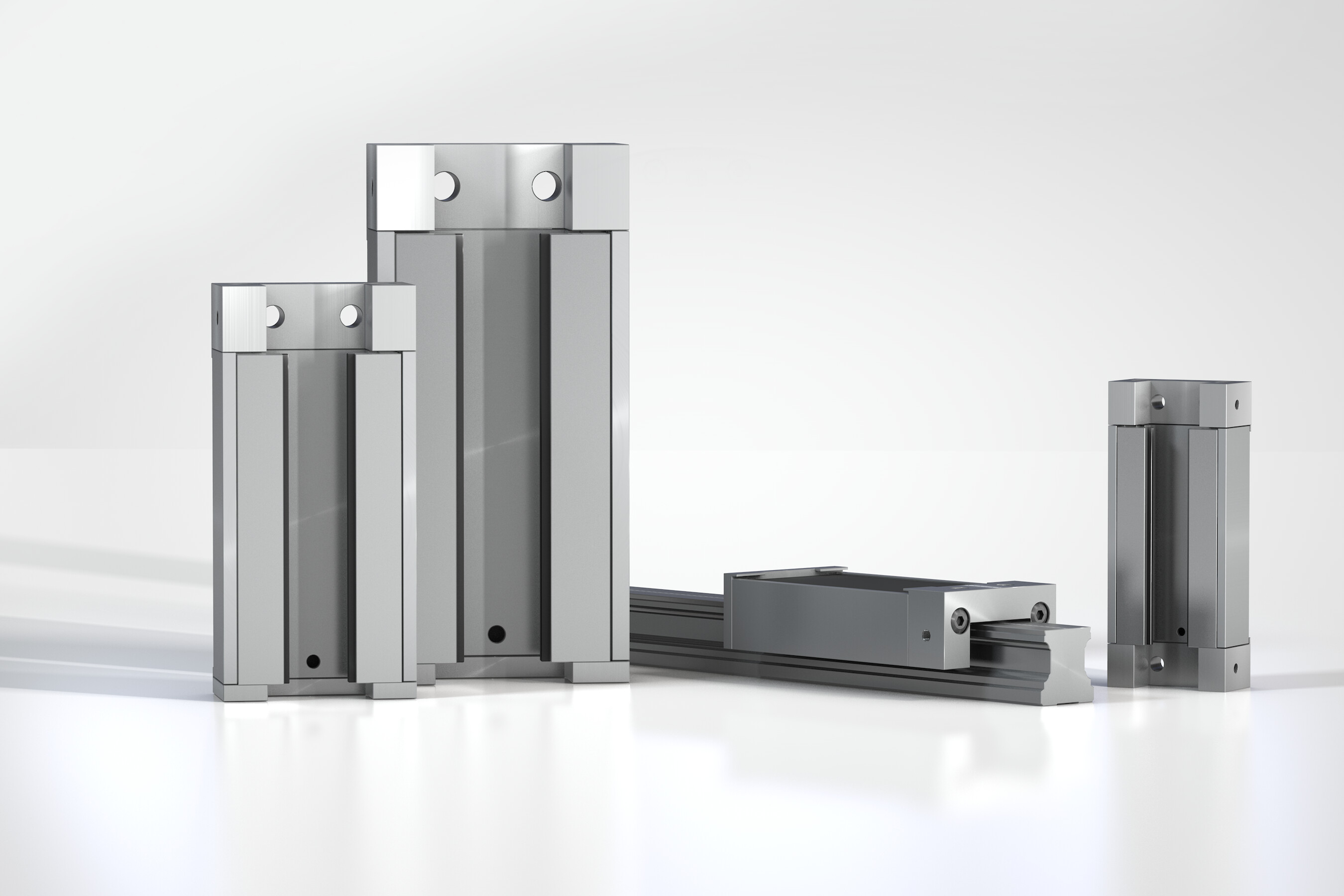

LOCKED SL
Safety clamping systems for rail constructions on lathes
Mech. Engineering & Automation
assembly stations, positioning tables, feeder installations, transport systems, tool machines

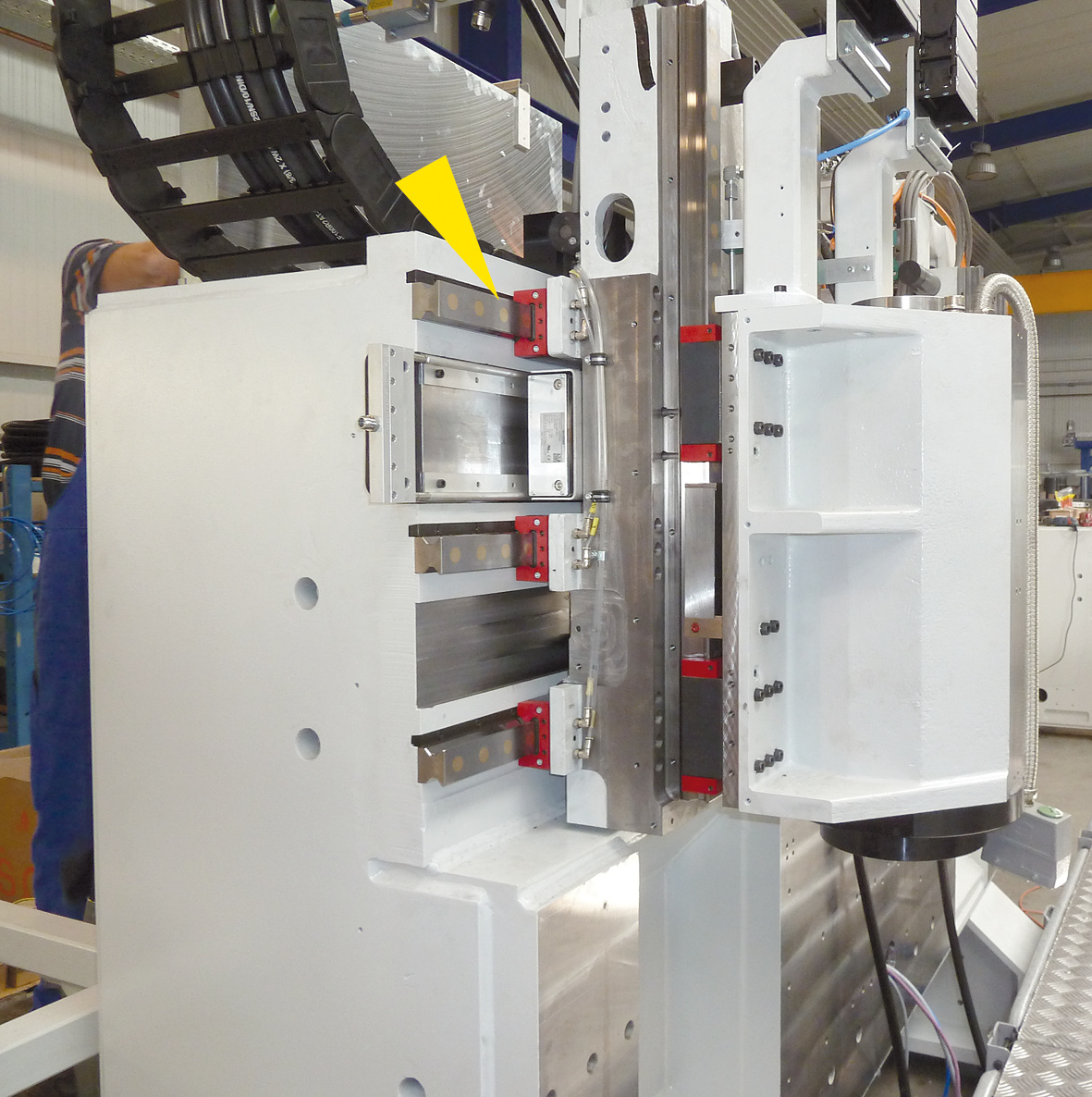

ACE Clamping and safety elements hold axes in special lathes rock-solid and secure previously determined positions horizontally and vertically
In order to secure the processing position of a special lathe in both the horizontal and the vertical axis, LOCKED SL clamping elements from ACE are installed. They have the further advantage of preventing slippage through the vertical axis in the case of a malfunction. The products used in the SL family not only have the correct track width and offer very high process clamping forces of up to 10,000 N, but can also apply the same force as an emergency-stop braking function. This is due to the specially integrated brake linings made of low-wear sintered metal.
