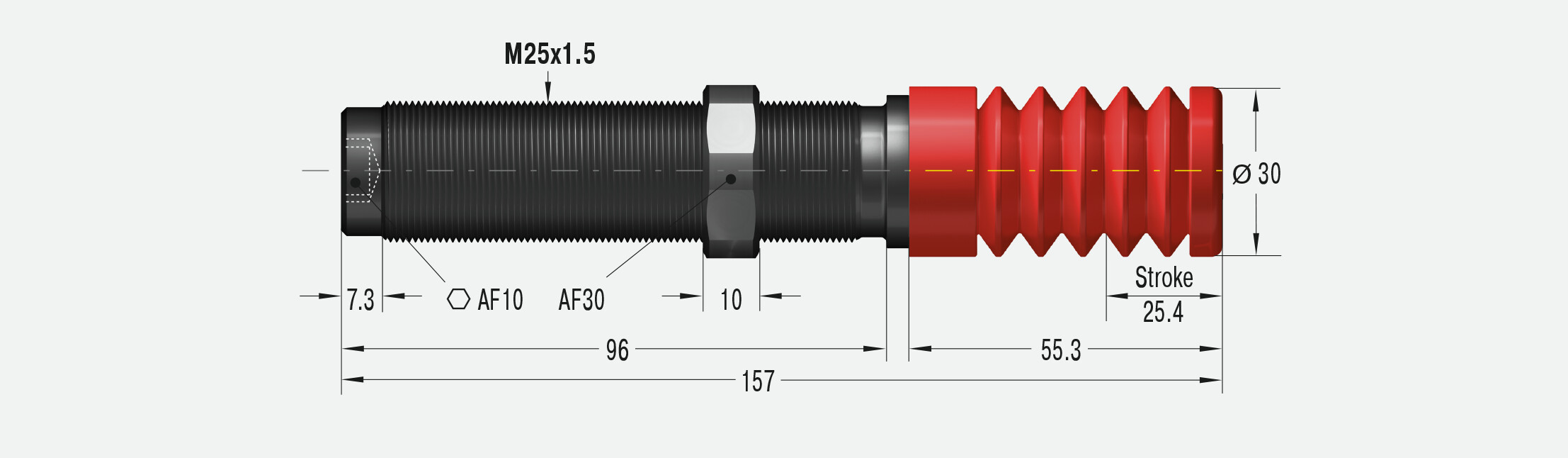

Miniature Shock Absorbers
PMCN600EUM
Reliable protection against fluids
Self-Compensating, Rolling Diaphragm Technology, TPU Bellow
Energy capacity per stroke 136 Nm/cycle
Stroke 25.4 mm
Hermetically sealed: The shock absorbers from the ACE Protection family PMCN have a compact, perfectly sealed cap as a special feature. This protection bellows, made of TPU (thermoplastic polyurethane), safely encapsulates the proven ACE rolling diaphragm from the outside environment. Aggressive cutting, lubricating and cleaning agents don't stand a chance and the function of the maintenance-free, ready-to-install shock absorber is retained. They are also available in full stainless steel.
The PMCN range is a good alternative to the SP type air bleed collar if no compressed air is available on the machine or system.
Reliable protection against aggressive fluids, these miniature shock absorbers are the first choice everywhere where conventional dampers wear out too quickly, eg. As in machining centers or other applications of mechanical engineering.
The PMCN range is a good alternative to the SP type air bleed collar if no compressed air is available on the machine or system.
Reliable protection against aggressive fluids, these miniature shock absorbers are the first choice everywhere where conventional dampers wear out too quickly, eg. As in machining centers or other applications of mechanical engineering.
Miniature Shock Absorbers
PMCN600EUM
Reliable protection against fluids
Self-Compensating, Rolling Diaphragm Technology, TPU Bellow
Energy capacity per stroke 136 Nm/cycle
Stroke 25.4 mm
Energy capacity per stroke 136 Nm/cycle
Stroke 25.4 mm
€222.01
List price excl. VAT.
excl. shipping
165 units in stock
(Delivery time: 1 - 3 days)
