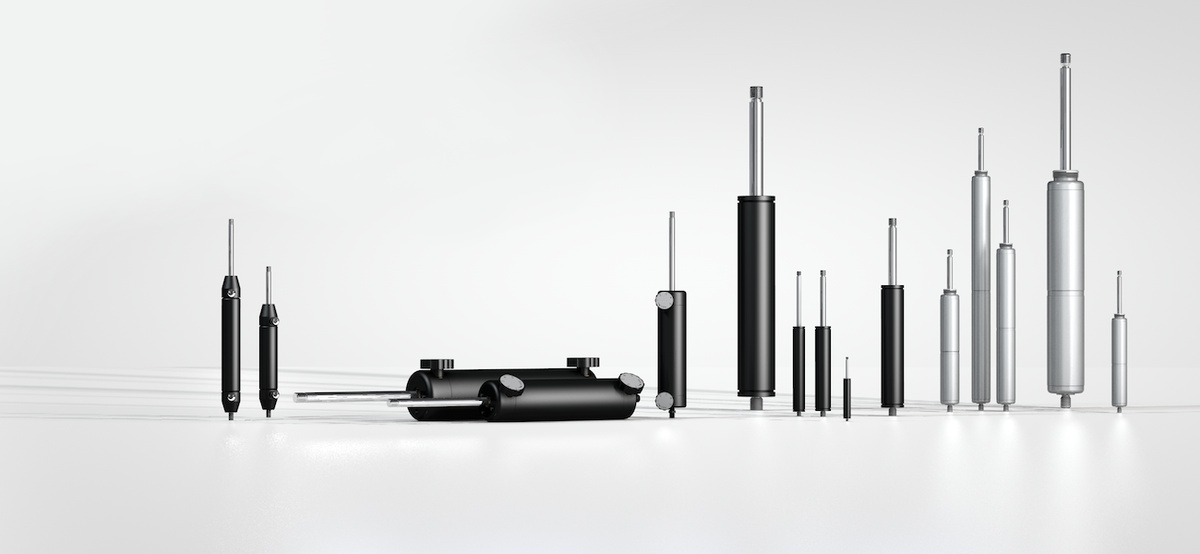

Hydraulic Dampers

Multi-talent in speed control

The hydraulic dampers are similar in appearance to the ACE industrial gas springs but are adjusted in the end position and work differently to the DVC family with individual speed adjusters for the push and pull direction. This provide users with the maximum flexibility.

Whether used as drive compensation or safety elements, the retraction and extension speed of these ACE solutions can always be precisely set. This means that the speed of movement can be controlled, synchronisation regulated in both directions and pivoting loads can be compensated. Depending on the model, the push and pull forces are between 30 N and 40,000 N. These maintenance-free, ready-to-install products are available in body diameters of 12 mm to 70 mm and in stroke lengths up to 800 mm.

Product families

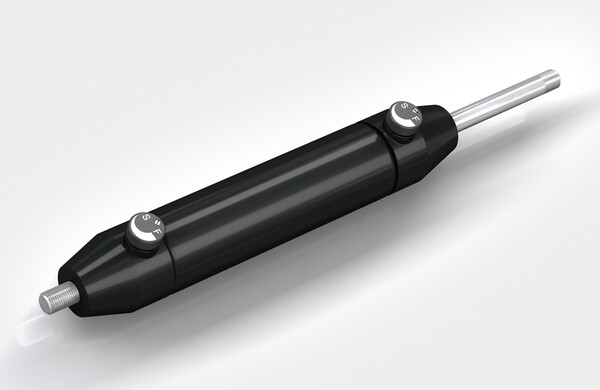

DVC-32

DVC-32 Can be regulated separately in any stroke position: The hydraulic dampers of the product family DVC-32 are the first dampers to have the ability to have the in and out speeds adjusted independently from the outside and therefore more precisely.

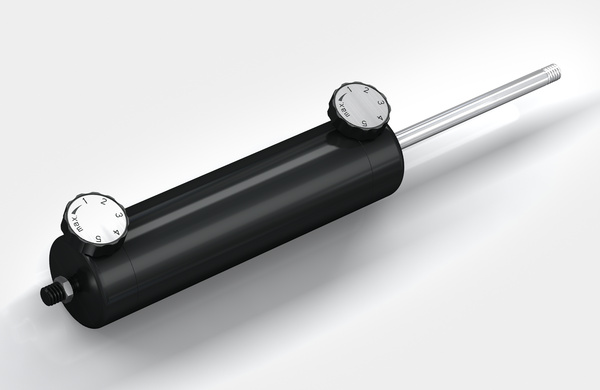

HBD-50 to HBD-85

HBD-50 to HBD-85 Motion control in both directions: The hydraulic dampers of the product family HBD can be adjusted independently in both the push and pull direction.

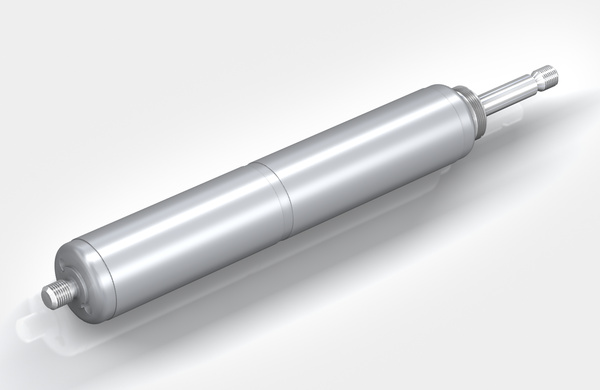

HBS-28 to HBS-70

HBS-28 to HBS-70 Damping either in one or both directions: The hydraulic dampers of the product family HBS are made in a slim gas spring design and are compact and high in performance.

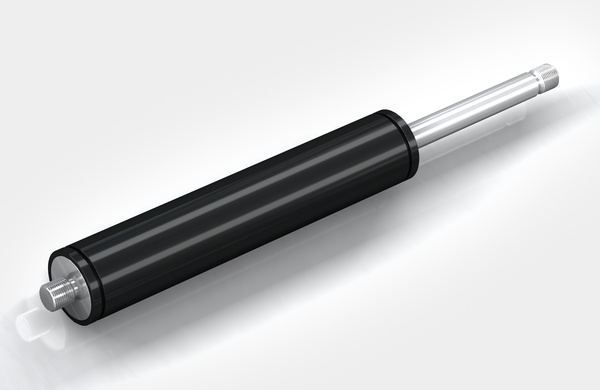

HB-12 to HB-70

HB-12 to HB-70 High quality and long service life: The hydraulic dampers of the product family HB can also be used as single or double acting brake.

×
