Industrial Gas Springs – Pull Type

Takes over when things get too tight for gas pressure springs

If ACE gas push type springs cannot be used due to a lack of space, ACES' industrial gas pull type springs come into their own. The compact assistants with body diameters of 15 to 40 mm are effective in the direction of traction and work in the opposite way to the principle of gas push type springs.

This means that the gas pressure in the cylinder draws the piston rod in and, when closing a flap for example, supports the manual force with the pressure springs. ACE''s gas pull type springs are also self-contained, maintenance-free machine elements and equipped with a standard valve to individually regulate the gas pressure, whereby they cover forces between 30 and 5,000 N. Any installation position, extensive DIN standardised accessories and various models enable universal use.

Product families

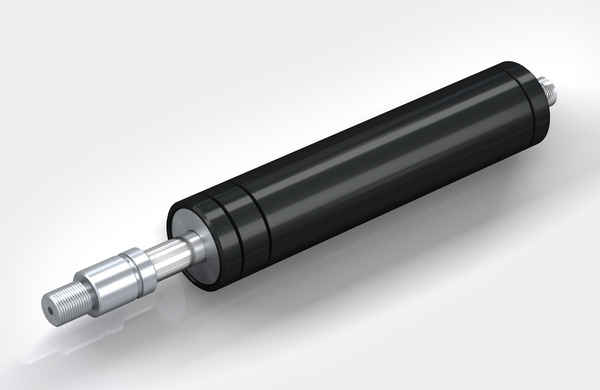

GZ-15 to GZ-40

GZ-15 to GZ-40 The solution to a lack of space: If standard push type gas springs cannot be used due to a lack of space, ACES' industrial pull type gas springs come into their own.

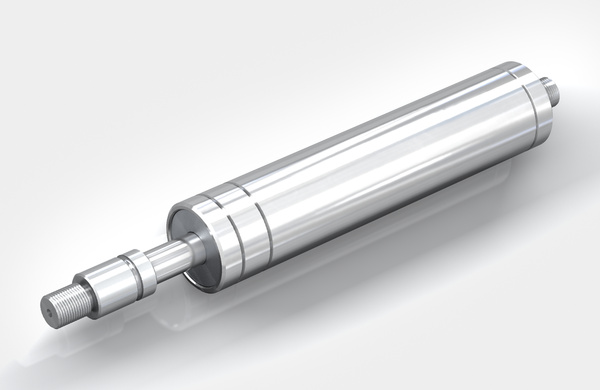

GZ-15-V4A to GZ-40-VA

GZ-15-V4A to GZ-40-VA Brilliant performance when things become tight: For specific use e.
