Rubber-Metal Isolators

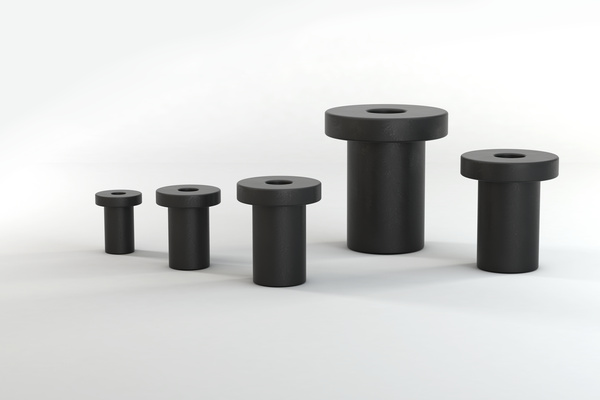

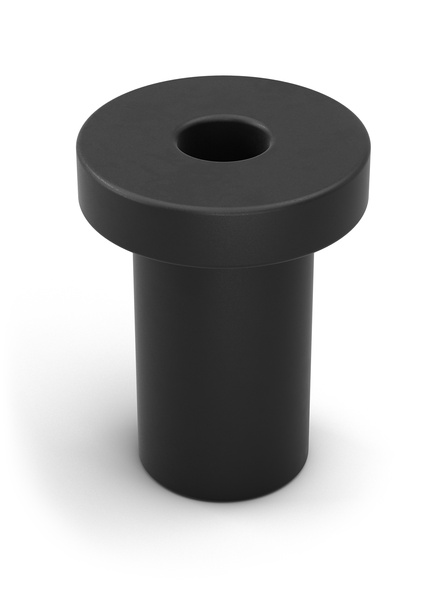

Flex Locs

Vibrations are easily isolated in different directions

Quick Fastening Elements

Decoupling two components effectively from each other: The quick connection element of the product family Flex Locs is a releasable pop rivet connection, which ensures simple but effective isolation of vibrations, impacts and structure-borne noise. The connection elements are fastened using standard metric screws sized M3 to M8, bracing between the front and clamping side like rivets. Additionally, the elastic FL elements can be fastened with screw connections in blind holes, for example to connect trim elements to existing building structures. They can then isolate structural resonances down to 150 Hz. The level of isolation that can be achieved over conventional structural vibrations is up to 80 %.

They are used with aggregates and machines, covers, plates and flanges, and also with facing components on buildings, transporters and construction machinery.

Technical data

Operating temperature range -30 °C to +80 °C

Environment Resistant against UV radiation

Material Outer body, Isolation medium: Neoprene (chloroprene rubber)

Application field aggregates and machinery, cladding, panels and flanges, control boxes, buildings, vehicles and transport industry

Note

Fail-safe. Easy handling. Efficient decoupling of housings. No special tools necessary. Isolates structure-borne noise.

On request

Special options.

Application Examples

Rubber-Metal Isolators - Flex Locs
In the present case, when compared to screw connections, the modern quick connection elements produced by ACE have a distinct advantage: their material makes them resistant to the most diverse range of aggressive media, including salt water....
Rubber-Metal Isolators - Flex Locs
Premium sauna manufacturer EOS Saunatechnik relies on ACE rubber-metal isolators to eliminate disruptive noises in a sauna whose water for infusions is drawn from a mill wheel. During the development phase of the “mill sauna”, it became evident...

Application Areas

  • aggregates and machinery
  • cladding, panels and flanges
  • control boxes
  • buildings
  • vehicles and transport industry
They are used with aggregates and machines, covers, plates and flanges, and also with facing components on buildings, transporters and construction machinery.
×
