TYPESEnergy capacity Nm/cycleEnergy capacity Nm/hEffective weight min. kgEffective weight max. kg
FA1008VD-B1.83,6000.2010

Miniature Shock Absorbers
FA1008VD-B

Stepless adjustment

Adjustable
Energy capacity 1.8 Nm/cycle
Stroke 8 mm

The miniature shock absorbers from the MA30 to MA900 product family can be adjusted and precisely adapted to your requirements. For example, the MA150 displays the rolling diaphragm technology from the MC150 to MC600 family and offers all of the advantages of this technology, such as use in pressure chambers. Thanks to long strokes (including 40 mm on the MA900) lower reaction forces result, which provide a soft damping characteristic.

All variations of these units are maintenance-free, ready-to-install machine elements and have an integrated positive stop. They provide the best service where application data changes, where the calculation parameters are not clear or where maximum flexibility in the possible usage is required.

The adjustable miniature shock absorbers from ACE can be used to meet precisly the customer's application and are therefore found everywhere in mechanical engineering and many other applications.
Miniature Shock Absorbers
FA1008VD-B
Stepless adjustment
Adjustable
Energy capacity 1.8 Nm/cycle
Stroke 8 mm
ACE Controls Inc. - Image - FA1008VD-B
ACE Controls Inc. - Image - FA1008VD-B
ACE Easy Sizing Don't know Size or Type? Size it!
€95.26
List price excl. VAT.
excl. shipping
in stock (Delivery time: 1 - 3 days)

CAD Drawings

Product-Downloads

  • ACE CAD
  • Traceparts
  • Cadenas Part Solutions
Operating & Mounting Instructions

Family MA30 to MA900

Operating & Mounting Instructions 2 MB 20/06/2022
  • Technical Details
  • Accessories
FA1008VD-B
Adjustable

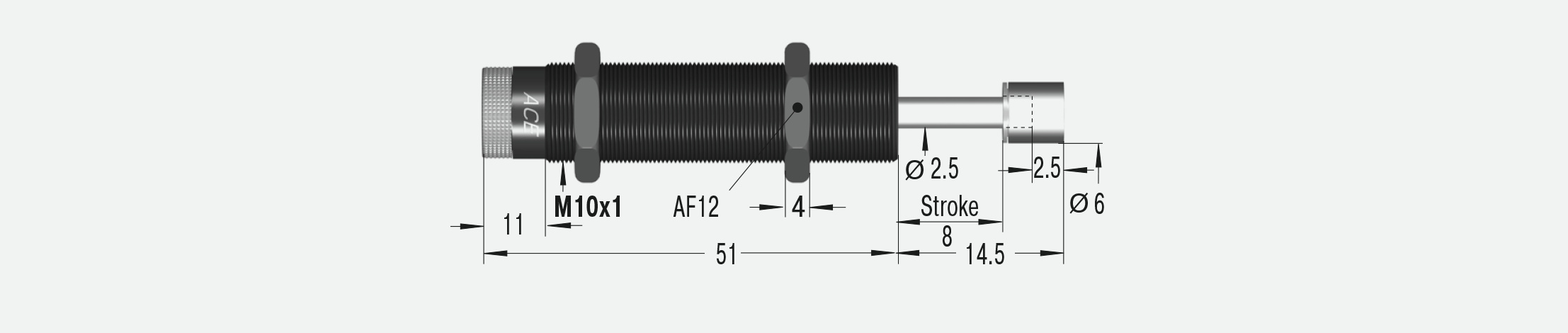

Dimensions

FA1008VD-B
Stroke8 mm

Technical data

Energy capacity 1.8 Nm/cycle

Energy capacity 3,600 Nm/h

Effective weight min. 0.20 kg

Effective weight max. 10 kg

Return Force min. 3.0 N

Return Force max. 6.0 N

Return Time 0.3 s

Side Load Angle max. 2.5 °

Impact velocity range 0.15 m/s to 4.5 m/s. Other speeds on request.

Operating temperature range 0 °C to 66 °C

Mounting in any position

Positive stop Integrated

Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.

Material Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel

Damping medium oil, temperature stable

Note

If precise end position datum is required consider use of the stop collar type AH. Shock absorber is preset at delivery in a neutral position between hard and soft.

Safety information

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission.

On request

Nickel-plated or other special options available to special order. Models without rod end button.

Sales data

Weight
0.026 kg

F and R Weight
0.0 kg

S Weight
0.0 kg

Customs tariff number
84879059

Country of origin
JP

FA1008VD-B
Adjustable

Accessories

1-9 items €1.57
above 100 items €1.38
€1.57
Locknut
KM10
KM10
1-9 items €5.13
above 100 items €4.51
€5.13
Stop Collar
AH10
AH10

Mounting Accessories

1-9 items €14.84
above 100 items €13.06
€14.84
Mounting Block
MB10SC2
MB10SC2
1-9 items €14.84
above 100 items €13.06
€14.84
Rectangular Flange
RF10
RF10
1-9 items €15.55
above 100 items €13.68
€15.55
Universal Mount
UM10
UM10
  • Products
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Applications
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Calculations
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Service & Downloads
  • CAD-Drawings
  • Catalogues and more
  • Mounting Instructions
  • Mobile Apps
  • Knowledge
  • ACE Academy
  • Certifications
  • News & Press
  • Press Releases
  • Trade Shows
  • Sales
  • Where to Buy
  • Quick Order - eShop
  • Price Request
  • Procurement
  • Service, Support & Info

ACE Stoßdämpfer GmbH

Albert-Einstein-Str. 15

40764 Langenfeld

Germany

T +49 (0)2173 - 9226-10

  • About us
  • A Stabilus Company
  • Contact & Directions

ACE Stoßdämpfer GmbH © 2023

  • Cookie Settings
  • Terms and Conditions
  • Privacy Policy
  • Payment & Delivery
  • Imprint
ACE is not responsible for content on external linked websites.
Successfully logged in
