Motion Control
Product Series
  • Industrial Gas Springs – Push Type
  • Industrial Gas Springs – Pull Type
  • Hydraulic Dampers
  • Door Dampers
  • Hydraulic Feed Controls
  • Rotary Dampers
Product families
  • GS-8 to GS-70
  • GS-8-V4A to GS-40-VA
  • GST-40 Tandem
Basic Types
  • GST-40
TYPESStroke mmStroke A mmStroke B mmL extended mm
GST-40-50-100-50100485
GST-40-50-150-50150585
GST-40-50-200-50200685
GST-40-70-250-70250825
GST-40-70-300-70300925
GST-40-70-350-703501,025
GST-40-70-400-704001,125

Industrial Gas Springs – Push Type
GST-40-50-150

Optimised dual force for heavy flaps and wide angle applications

Valve Technology
Extension force max. 5,000 N
Stroke - mm

Cover two differing force ranges: Tandem push type gas springs by ACE are maintenance-free and ready-to-install with two pressure tubes with different extension forces and progression curves. With this type of gas spring you cover the different force ranges between the start and end of an application. These force ranges are adjusted and compliment each other, designed individually for the relevant application by the free of charge ACE calculation service, then are specifically manufactured adjusted precisely to the required dynamics of the application.

The customer specific systems, for which there are many fitting parts, are specifically suitable for heavy loads with large opening angle and can also be delivered in stainless steel versions.
Industrial Gas Springs – Push Type
GST-40-50-150
Optimised dual force for heavy flaps and wide angle applications
Valve Technology
Extension force max. 5,000 N
Stroke - mm
ACE Controls Inc. - Image - GST-40
ACE Controls Inc. - Image - GST-40
ACE Easy Sizing Don't know Size or Type? Size it!
€473.67
List price excl. VAT.
excl. shipping
on request (Currently out of stock. You will be informed about availability as soon as possible after reviewing your request.)

CAD Drawings

Product-Downloads

  • ACE CAD
  • Traceparts
  • Cadenas Part Solutions
Operating & Mounting Instructions

Family GST-40 Tandem

Operating & Mounting Instructions 432 kB 04/06/2024
  • Technical Details
  • Use Cases
  • Accessories
GST-40-50-150
Valve Technology

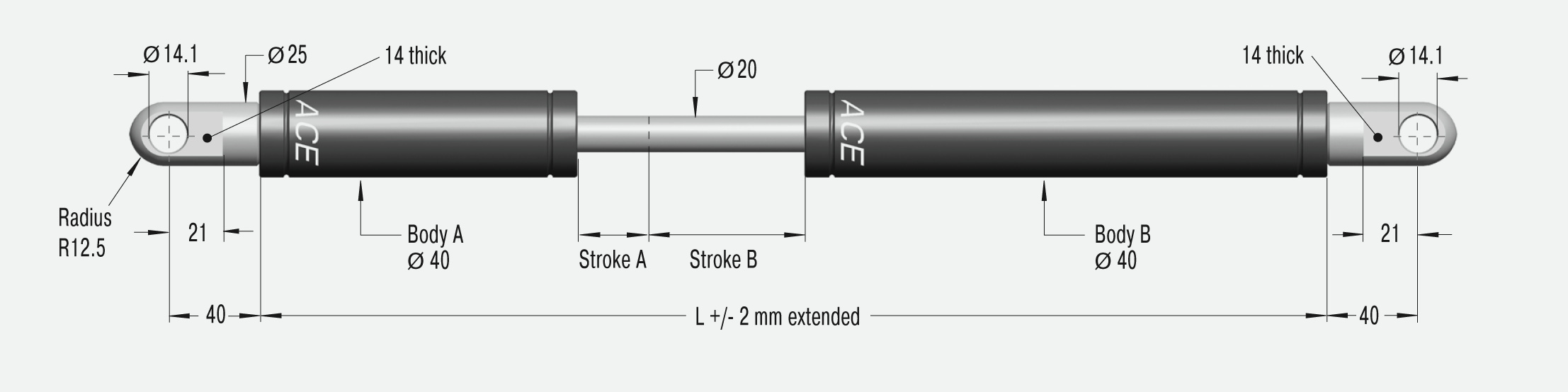

Dimensions

GST-40-50-150
Stroke- mm
Stroke A50 mm
Stroke B150 mm
L extended585 mm

Technical data

Extension force max. 5,000 N

Piston rod diameter Ø 20 mm

Progression according to calculation relating to your application

Lifetime Approx. 10,000 m

Operating temperature range -20 °C to +80 °C

Material Outer body, End fittings: zinc plated steel; Piston rod: steel with wear-resistant coating

Operating fluid nitrogen gas and oil

Mounting in any position. Please adopt the mounting points determined by ACE.

End position damping length Application-specific end position damping and extension speed.

Positive stop External positive stop at the end of stroke provided by the customer.

Note

These gas springs are tailored to the relevant application and are therefore not available ex stock.

End fittings

They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing.

On request

Special oils and other special options. Alternative accessories. Material 1.4301/1.4305, AISI 304/303 (V2A) and 1.4404/1.4571, AISI 316L/316Ti (V4A).

Sales data

Weight
2.272 kg

F and R Weight
0.0 kg

S Weight
0.0 kg

Customs tariff number
83024900

Country of origin
DE

GST-40-50-150
Valve Technology

Application Examples

Motion support for assembly arms in the automotive industry
Industrial Gas Springs – Push Type - GST-40 Tandem
Motion support for assembly arms in the automotive industry
Industrial gas springs add support to the muscular strength of the user when opening doors, hoods and covers. Standard models however, which are used for example on vehicle hoods and tailgates, are limited by the functional principle on which they...
Motion support for assembly arms in the automotive industry
Opening and closing mechanisms for heavy covers on undergro...
Industrial Gas Springs – Push Type - GST-40 Tandem
Opening and closing mechanisms for heavy covers on undergro...
Underground distribution systems are visually advantageous. To facilitate their servicing, the heavy covers of the often large supply systems are brought back to the surface with the help of ACE industrial tandem gas springs (push type). This is q...
Opening and closing mechanisms for heavy covers on undergro...

Application Areas

  • hoods
  • shutters
  • machine housing
  • conveyor systems
  • folding elements
  • loading and lifting equipment
Tandem push type gas springs from ACE are used in industrial applications such as in mechanical engineering, in the automobile, electronics and furniture industries, but also in medical technology as well as for service hatches.
GST-40-50-150
Valve Technology

End Fitting

1-3 items €30.10
above 100 items €9.03
€30.10
Clevis Fork
D14
D14
1-3 items €62.03
above 100 items €18.61
€62.03
Swivel Eye
E14
E14
1-3 items €20.39
above 100 items €6.12
€20.39
Eye
A14
A14

Mounting Bracket

1-3 items €151.73
above 100 items €45.52
€151.73
Bearing Shoe
ME14
ME14
1-3 items €132.64
above 100 items €39.79
€132.64
Mounting Flange
ND14
ND14
  • Products
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Applications
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Calculations
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Service & Downloads
  • CAD-Drawings
  • Catalogues and more
  • Mounting Instructions
  • Mobile Apps
  • Knowledge
  • ACE Academy
  • Certifications
  • News & Press
  • Press Releases
  • Trade Shows
  • Sales
  • Where to Buy
  • Quick Order - eShop
  • Price Request
  • Procurement
  • Service, Support & Info

ACE Stoßdämpfer GmbH

Albert-Einstein-Str. 15

40764 Langenfeld

Germany

T +49 (0)2173 - 9226-10

  • About us
  • A Stabilus Company
  • Contact & Directions

ACE Stoßdämpfer GmbH © 2023

  • Cookie Settings
  • Terms and Conditions
  • Privacy Policy
  • Payment & Delivery
  • Imprint
ACE is not responsible for content on external linked websites.
Successfully logged in
