Profile Dampers

Compact size and strong force absorption

Axial Damping
Energy capacity 6.0 Nm/cycle
Stroke max. 7 mm

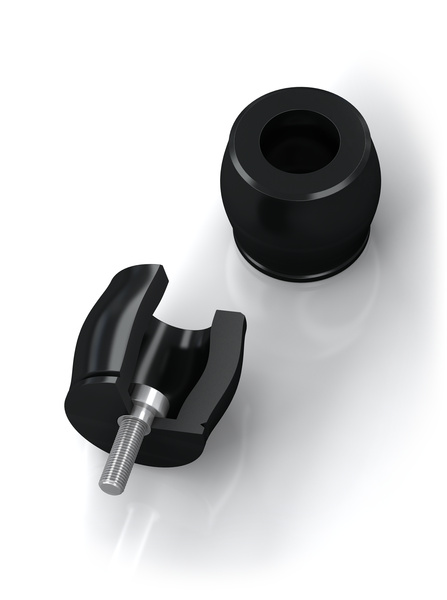

Very efficient energy guzzlers: The TA profile dampers from the ACE TUBUS-Series are maintenance-free and ready to install. They consist of co-polyester elastomer; a material that only heats up slightly and ensures consistent damping. The TA models absorb a lot of energy at the start of the stroke.

The TA family has been specially developed for maximum energy absorption within a range of 2 Nm to 2,951 Nm. The minimum height is thanks to the space-saving shape with Ø 12 mm to Ø 116 mm. The dampers can be very easily and quickly fixed with the provided special screw.
Axial Damping


Stroke max.7 mm
A16 mm
d117 mm
d215 mm
d322 mm
MM4 mm
LM4 mm

Technical data

Energy capacity 6.0 Nm/cycle

Energy capacity emergency use 9 Nm/cycle

Energy absorption 58 % to 73 %

Dynamic force range 870 N to 90,000 N

Operating temperature range -40 °C to +90 °C

Construction size 12 mm to 116 mm

Mounting in any position

Material hardness rating Shore 55D Shore

Material Profile body: co-polyester elastomer

Environment Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell.

Impact velocity range Max. 5 m/s

Torque max. M3: 1 Nm
M4: 1.7 Nm
M5: 2.3 Nm
M6: 6 Nm
M8: 20 Nm
M12: 50 Nm
M16: 120 Nm


Suitable for emergency stop applications and for continous use. For applications with preloading and increased temperatures please consult ACE.

Safety information

Mounting screw should additionally be secured with Loctite.

On request

Special strokes, -characteristics, -spring rates, -sizes and -materials.

General information

Application Examples

Profile Dampers - TUBUS TA
Preventing expensive damage after software errors or power outages is the task of two TUBUS TA17-7 profile dampers. Installed in various linear axes, handling and feed systems, they ensure that there are no uncontrolled impacts of the masses in...
Profile Dampers - TUBUS TA
ACE TUBUS profile dampers protect the integrated loading station on a new high speed machining centre. The ACE TUBUS damper is designed to prevent overrun on the high speed loading station of a Camshaft machining centre used in the automobile...
Profile Dampers - TUBUS TA
For the forming, folding, punching and cutting of steel sheets, voestalpine Camtec GmbH wanted to realise new compact slides that achieve service lives beyond 1 million strokes. The company was looking for compact dampers that could absorb the...
Profile Dampers - TUBUS TA
A customer of tech-solute GmbH needed an assembly aid for the analysis of medical samples within a short time. Standard components were requested, which ACE quickly delivered. Instead of additionally securing the specimens manually in ball vices...

Application Areas

  • linear slides
  • pneumatic cylinders
  • handling modules
  • machines and plants
  • swivel units
  • electro-mechanical drives
  • hydraulic devices
  • conveyor systems
  • crane systems
These compact, cost-effective machine elements are ideal as end position dampers in linear axes, in toolmaking and tool machines, in hydraulic and pneumatic equipment, handling equipment and other applications.
