Miniature Shock Absorbers
MA50EUM-880

Stepless adjustment

Adjustable, without Rod Button
Energy capacity 5.5 Nm/cycle
Stroke 7.2 mm

The miniature shock absorbers from the MA30 to MA900 product family can be adjusted and precisely adapted to your requirements. For example, the MA150 displays the rolling diaphragm technology from the MC150 to MC600 family and offers all of the advantages of this technology, such as use in pressure chambers. Thanks to long strokes (including 40 mm on the MA900) lower reaction forces result, which provide a soft damping characteristic.

All variations of these units are maintenance-free, ready-to-install machine elements and have an integrated positive stop. They provide the best service where application data changes, where the calculation parameters are not clear or where maximum flexibility in the possible usage is required.

The adjustable miniature shock absorbers from ACE can be used to meet precisly the customer's application and are therefore found everywhere in mechanical engineering and many other applications.
MA50EUM-880
Adjustable, without Rod Button

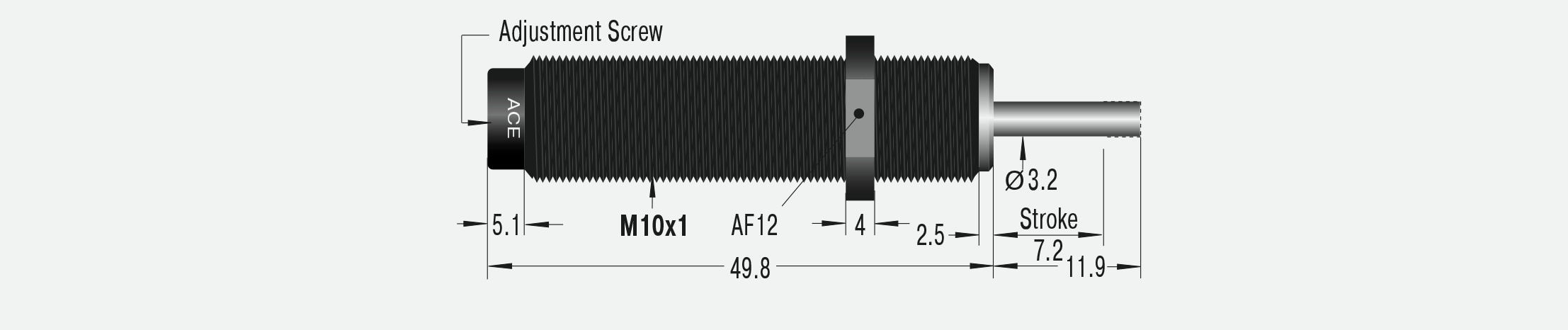

Dimensions

MA50EUM-880
Stroke7.2 mm

Technical data

Energy capacity 5.5 Nm/cycle

Energy capacity 13,550 Nm/h

Effective weight min. 4.50 kg

Effective weight max. 20 kg

Return Force min. 3.0 N

Return Force max. 6.0 N

Return Time 0.3 s

Side Load Angle max. 2.0 °

Impact velocity range 0.15 m/s to 4.5 m/s. Other speeds on request.

Operating temperature range 0 °C to 66 °C

Mounting in any position

Positive stop Integrated

Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.

Material Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel

Damping medium oil, temperature stable

Note

If precise end position datum is required consider use of the stop collar type AH. Shock absorber is preset at delivery in a neutral position between hard and soft.

Safety information

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission.

On request

Nickel-plated or other special options available to special order. Models without rod end button.
