TYPESEnergy capacity Nm/cycleStroke mmDynamic force min. NDynamic force max. N
VS-BA5A-105-FA25,000105167,000310,000
VS-BA5B-130-FA50,000130260,000500,000
VS-BA5C-FA68,000140350,000700,000
VS-BA5D-FA100.000160420,000820,000
VS-BA5E-FA150,000180650,0001,100,000

Viscoelastic Shock Absorbers

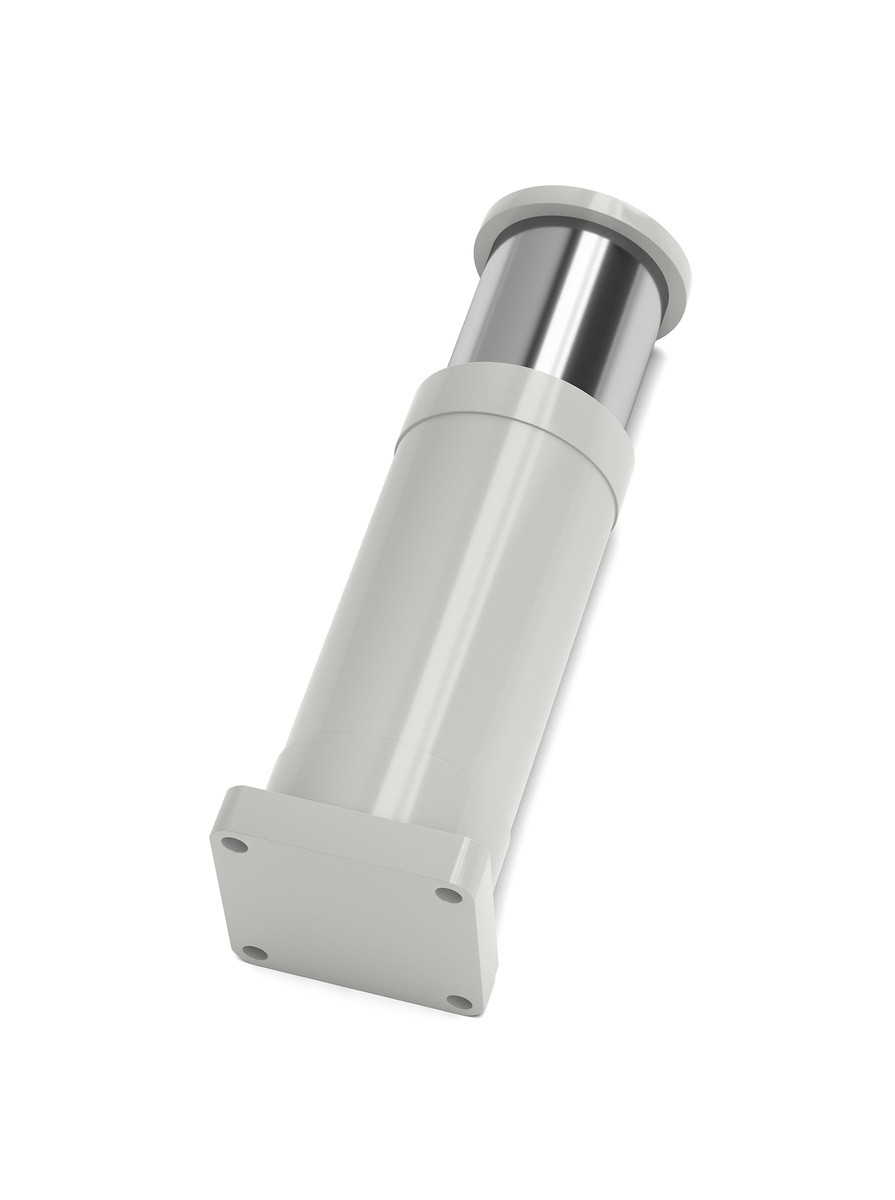

VS-BA5E-FA

Simple Design – High reliability

Energy capacity 150,000 Nm/cycle
Stroke 180 mm

The self-adjusting Viscoelastic Shock Absorbers are designed on the principals of hydrostatic compression to combine the funtions of a shock absorber and a spring.

The advantages are a high damping coefficient, a low sensitivity to temperature changes and increased security by integrated static preload.

CAD Drawings

Product-Downloads

No downloads available for this product
VS-BA5E-FA

Dimensions

VS-BA5E-FA
Stroke180 mm
A670 mm
B445 mm
C45 mm
d1208 mm
d2215 mm
d3182 mm
d4220 mm
d526 mm
E85 mm
F40 mm
G45 mm
J250 mm
K195 mm

Technical data

Energy capacity 150,000 Nm/cycle

Stroke 180 mm

Dynamic force max. 1,100,000 N

Dynamic force min. 650,000 N

Static force max. 740,000 N

Impact velocity range 0.5 m/s bis 5 m/s. Other speeds on request.

Operating temperature range -20 °C to +50 °C. Other temperatures on request.

Mounting In any position

Positive stop Integrated

Material Outer body, Rod end button: steel painted grey; Piston rod: zinc plated steel

Damping medium Visco elastic fluid

Note

The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect.
