Rotary Dampers
FRT-K2-502

Damping torque 50 +/- 10 Ncm

Damping direction bidirectional

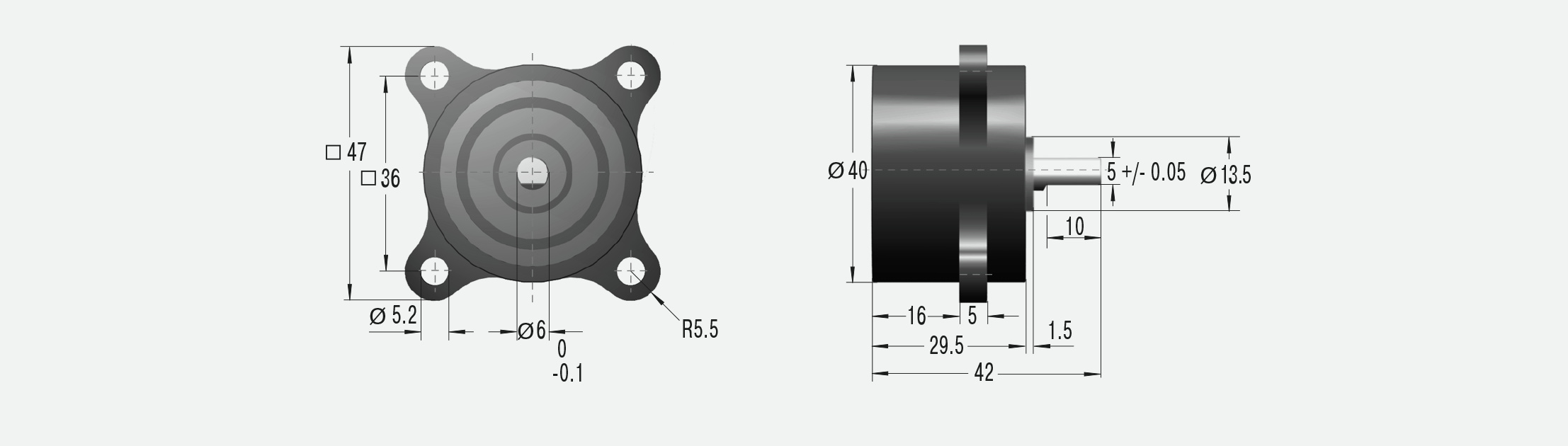

Construction size Ø 40 mm

Rotational speed max. 50 rpm

Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range 0 °C to 50 °C

Material Outer body: plastic; Shaft: steel

Mounting in any position

Mounting information

No axial or radial forces may be induced via the shaft.

Safety information

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special accessories available on request.

• miniature slides
• pneumatic cylinders
• handling modules
• copiers
• measuring tables
• machines and plants
• locking systems

These miniature shock absorbers are perfectly suited to use in applications such as mechanical engineering, medical and electro-technology and robotics.
