Rubber-Metal Isolators

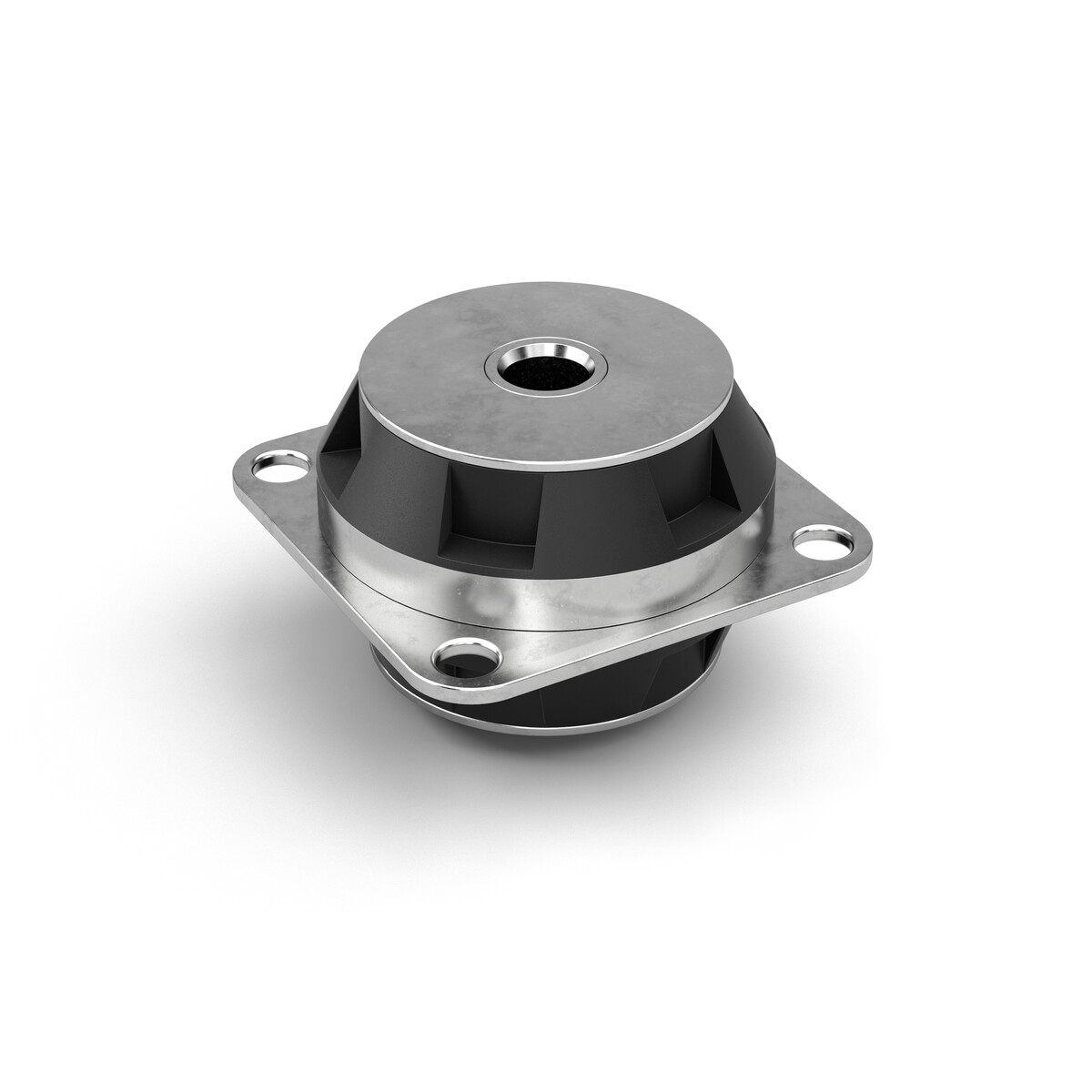

AAM-5220

Effective vibration isolation in all directions

Vibration-Isolating Mounts
Natural frequency 16 Hz to 40 Hz
Load range 1.3 kg to 22.7 kg

Perfect for protecting lightweight equipment: All Altitude Mounts isolators, which are maintenance-free and ready-made, are designed to withstand loads between 0.5 kg and 22.7 kg. This enables the impact and vibration isolator connection elements to effectively protect lightweight components, despite their small size. They isolate in all directions and can be installed in every conceivable spatial axis. They are suitable for all shear, compression and tension loads. As standard they are made from galvanised metal and neoprene rubber elements. A highly shock-absorbing silicone version is also available from ACE for special applications, to protect against heavy impacts.

AAM All Altitude Mounts are primarily used for isolating light-weight electronic systems and components, but also in off-road vehicles and for military applications.

Technical data

Natural frequency 16 Hz to 40 Hz

Load range 1.3 kg to 22.7 kg

Operating temperature range -30 °C to +80 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel; Isolation medium: Neoprene (chloroprene rubber)

Note

Shock absorption possible.

Mounting information

Can be installed in all spatial axes. Can be used for shear, compressive and tensile loads.

On request

Special applications with high-damping silicone.

Application Examples

Rubber-Metal Isolators - All Altitude Mounts
For their special kits for converting commercially available electric tractors into automated guided vehicles (AGVs), Schiller Automatisierungstechnik GmbH was looking for a fail-safe solution to protect the sensitive electronics in the control...

Application Areas

  • electronic systems and controls
  • off road
  • shipbuilding
  • military
AAM All Altitude Mounts are primarily used for isolating light-weight electronic systems and components, but also in off-road vehicles and for military applications.
×
