Vibration Control
Product Series
  • Vibration-Isolating Pads
  • Rubber-Metal Isolators
  • Low Freq. Pneumatic Levelling Mounts
Product families
  • Levelling Mounts
  • Soft Bell Mounts
  • Light Bell Mounts
  • Hard Bell Mounts
  • Compression Mounts
  • Marine Mounts
  • Cone Mounts
  • Universal Mounts
  • Bubble Mounts
  • All Altitude Mounts
  • Flex Locs
Basic Types
  • LEV
TYPESLoad min. kgLoad max. kgM mm
LEV-52221-M1045230M10
LEV-52224-M12135450M12
LEV-52226-M202302,040M20
LEV-52229-M241,8155,900M24

Rubber-Metal Isolators
LEV-52224-M12

Balancing elements for stability

Height-Adjustable Machine Feet
Natural frequency 8.0 Hz to 15.0 Hz
Load range 135 kg to 450 kg

Stability and protection against impacts: Machines and systems placed on the adjustable machine feet in ACE's Levelling Mounts product family can be stabilised perfectly. These maintenance-free machine elements can be levelled extremely accurately, compensating for floor unevenness and so ensuring the stability of anything standing on them. This protects the loads placed evenly on them against damaging impacts and vibrations, reducing operational noise.

They are available in thread sizes of M10 to M24 and are suitable for loads from 45 kg to 5,900 kg. Special types are also available, such as feet with special vibration isolation.

Using LEV levelling mounts, every machine can be kept quiet and safe, above all in production and processing centres, but also in the construction of production lines, assembly stations and many other applications.
Rubber-Metal Isolators
LEV-52224-M12
Balancing elements for stability
Height-Adjustable Machine Feet
Natural frequency 8.0 Hz to 15.0 Hz
Load range 135 kg to 450 kg
ACE Controls Inc. - Image - LEV
ACE Controls Inc. - Image - LEV
€124.82
List price excl. VAT.
excl. shipping
in stock (Delivery time: 1 - 3 days)

CAD Drawings

Product-Downloads

  • ACE CAD
  • Traceparts
  • Cadenas Part Solutions
No downloads available for this product
  • Technical Details
LEV-52224-M12
Height-Adjustable Machine Feet

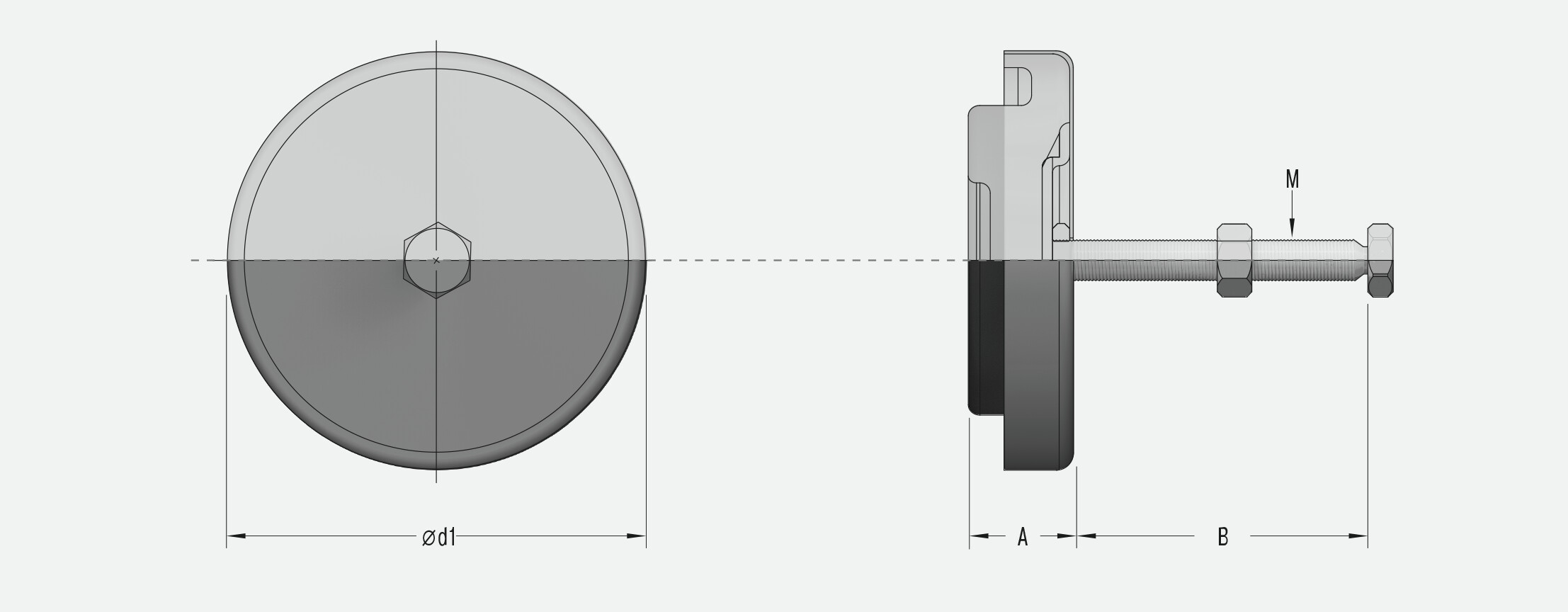

Dimensions

LEV-52224-M12
MM12 mm
d1120 mm
A38 mm
B130 mm

Technical data

Natural frequency 8.0 Hz to 15.0 Hz Hz

Load range 135 kg to 450 kg kg

Standard colour yellow

Operating temperature range -30 °C to +80 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel, painted; Isolation medium: Neoprene (chloroprene rubber)

Note

Easy to level. Compensates for floor unevenness.

On request

Special vibration-isolating feet according to design and custom-made product. Other special options.

Sales data

Weight
1.200 kg

Customs tariff number
40169991

Country of origin
US
